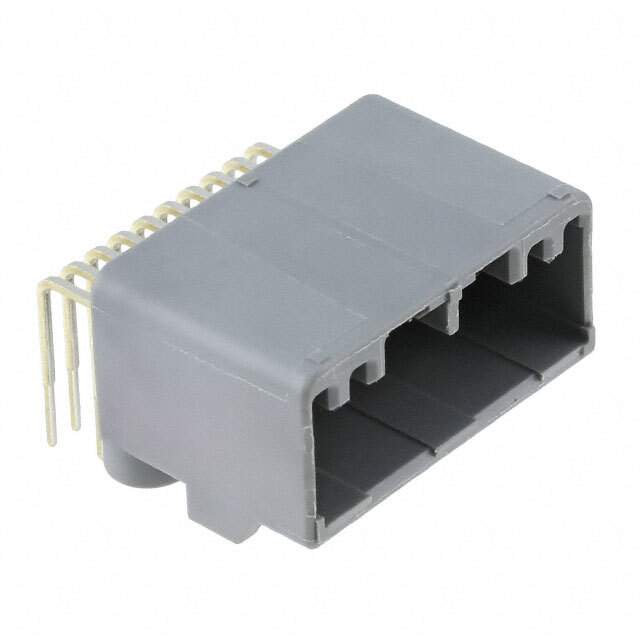

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 20 position 0.087" (2.20mm)
Manufacturer JAE Electronics
Series MX34
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name MX34020N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-2924, CBM-132383, MX34020NF1-ND
Quantity per package 1152
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886639-MX34020NF1
Ultra Librarian 3D Model Ultra Librarian MX34020NF1 CAD Model

Description

The JAE Electronics MX34020NF1 is a 20-position connector header that belongs to the MX34 series.

  • Mounting: Through-hole, right-angle
  • Pitch: 0.087" (2.20mm)
  • Packaging: Tube
  • Family Name: MX34020N
  • ECCN: EAR99
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Quantity per Package: 1152
  • Estimated Production Lead Time: 13 weeks
