Same model may have multiple batches, images only for reference.

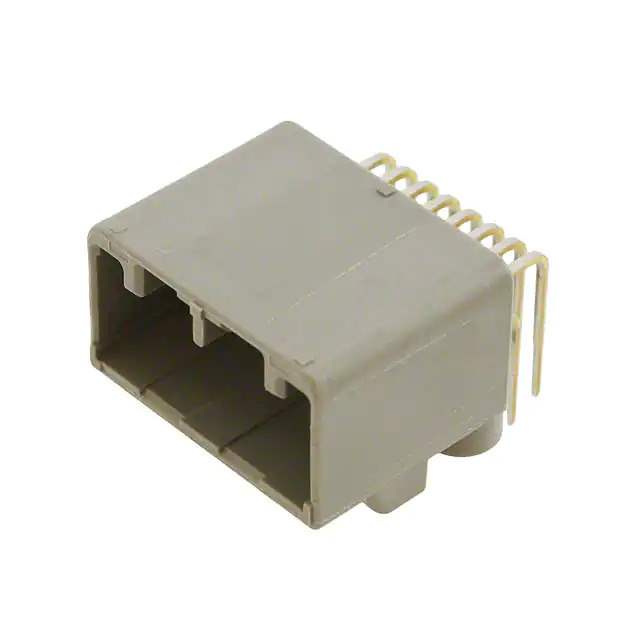

MX34016NF1 Real Image
Same model may have multiple batches, images only for reference.

MX34016NF1

Part No MX34016NF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 2.2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34016N
Standard Package 22 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849394-MX34016NF1
Ultra Librarian 3D Model Ultra Librarian MX34016NF1 CAD Model

Description

The MX34016NF1 is a male pin header connector from JAE Electronics.

  • Series: MX34
  • Number of Positions: 16
  • Mounting Feature: Mounting Flange
  • Application: Automotive
  • Pitch: 0.087" (2.20mm)
  • Mounting Type: Through Hole, Right Angle
  • Package: Tube
  • Contact Finish: Tin
  • Contact Material: Brass
  • Temperature Range: -40°C to 85°C
  • Current Rating: 3A
  • Status: Active
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
