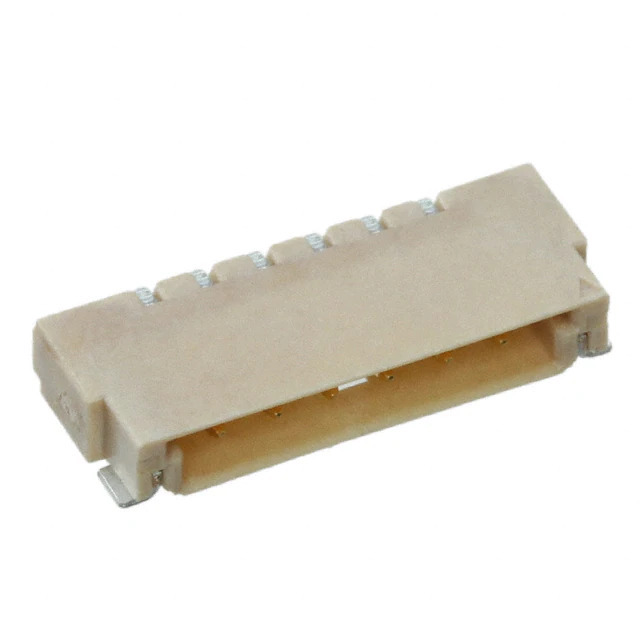

FI-S6P-HFE JAE Electronics
Same model may have multiple batches, images only for reference.

FI-S6P-HFE

Part No FI-S6P-HFE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 1.25MM / Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)
Datasheet
FI-S6P-HFE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series FI
Package Strip
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.071" (1.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post Tin or Tin-Alloy
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Temperature Range - Operating -40°C ~ 80°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number FI-S6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1352534-FI-S6P-HFE
Ultra Librarian 3D Model Ultra Librarian FI-S6P-HFE CAD Model

Description

The FI series male pin header connector is a reliable and versatile component from JAE Electronics for various applications.

  • Temperature Range: -40°C to 80°C
  • Solder Retention: Yes
  • Current Rating: 1A per contact
  • Style: Board-to-Cable/Wire
  • Number of Positions: 6
  • Shrouded: 4 Walls
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Voltage Rating: 200V
  • Mounting Type: Surface Mount, Right Angle
