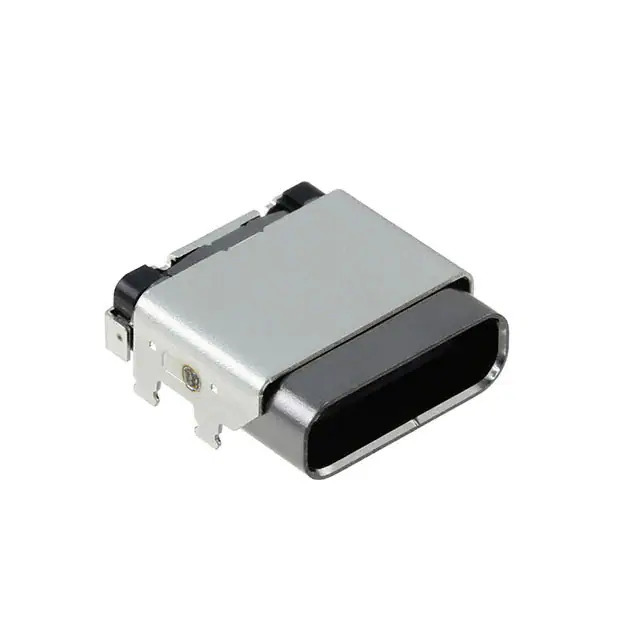

DX07S024XJ1R1100 JAE Electronics
Same model may have multiple batches, images only for reference.

DX07S024XJ1R1100

Part No DX07S024XJ1R1100
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors
Description CONN RCP USB3.1 TYPEC 24P SMD RA / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JAE Electronics
Series DX07
Package Tape & Reel
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Ingress Protection -
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A
Voltage - Rated 20V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating -
Insulation Color Black
Base Product Number DX07S024
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1364360-DX07S024XJ1R1100
Ultra Librarian 3D Model Ultra Librarian DX07S024XJ1R1100 CAD Model

Description

The DX07 series USB-C connector assembly from JAE Electronics is a high-quality and reliable electronic component. This connector assembly features a USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +) specification, providing fast and efficient data transfer.

  • Manufacturer: JAE Electronics
  • Series: DX07
  • Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +)
  • Current Rating: 0.25A, 1.25A
  • Mounting Type: Surface Mount, Through Hole
  • Shielded: Yes
  • Packaging: Tape & Reel
  • Status: Active
