Same model may have multiple batches, images only for reference.

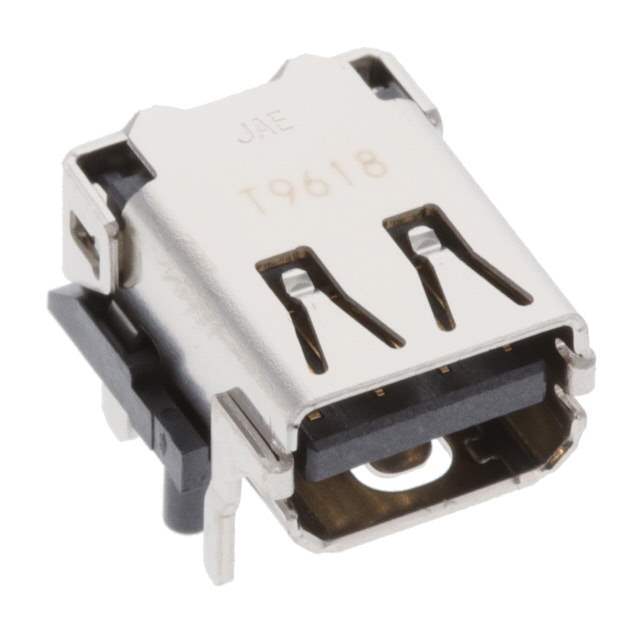

DP3AR020SU32JQ1R400JAE Electronics
Same model may have multiple batches, images only for reference.

DP3AR020SU32JQ1R400

Part No DP3AR020SU32JQ1R400
Manufacturer JAE Electronics
Catalog Pluggable Connectors
Description CONN SERIAL I/O RCPT 20P SMD R/A
Datasheet
DP3AR020SU32JQ1R400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306808-DP3AR020SU32JQ1R400
Manufacturer JAE Electronics
Category Connectors, Interconnects -Pluggable Connectors -Pluggable Connector Assemblies
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Style Receptacle
Connector Type Serial I/O
Number of Positions 20
Mounting Type Surface Mount, Right Angle, Horizontal
Termination Solder
Features Board Guide
Ultra Librarian 3D Model Ultra Librarian DP3AR020SU32JQ1R400 CAD Model

Description

The DP3 Series has been developed as an I/O connector compatible with ThunderboltTM Technology for high-speed transmission between PCs and peripheral devices. *Thunderbolt is a trademark of Intel Corporation in the US and other countries.
