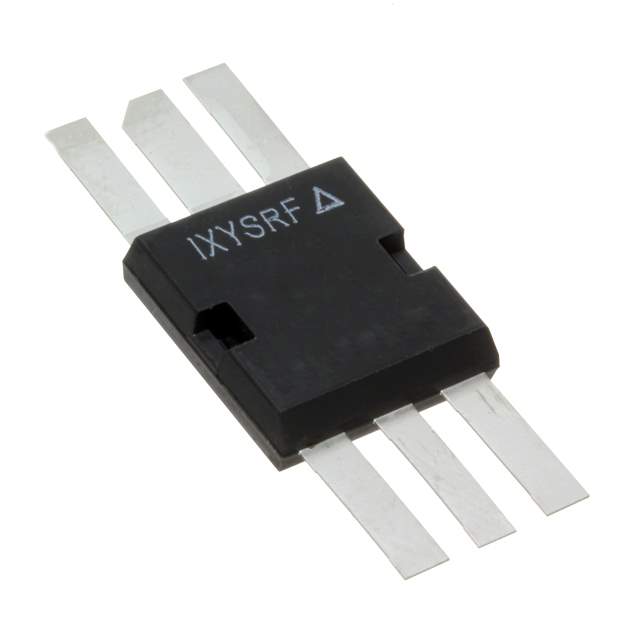

SS150TC60110 Real Image
Same model may have multiple batches, images only for reference.

SS150TC60110

Part No SS150TC60110
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Datasheet
SS150TC60110 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS-RF
Package Tube
Product Status Obsolete
Diode Configuration 3 Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package DE150
Base Product Number SS150
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1283027-SS150TC60110
Ultra Librarian 3D Model Ultra Librarian SS150TC60110 CAD Model

Description

The 1283027-SS150TC60110 is a silicon carbide Schottky diode designed for use in high-frequency switching power supplies, inverters, and other power electronics applications.

  • Reverse Voltage (Max): 600 V
  • Forward Voltage: 1.8 V @ 5 A
  • Current Rating: 10A
  • Package: 6-SMD, flat lead exposed pad
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C to 175°C
  • Package Type: Tube
