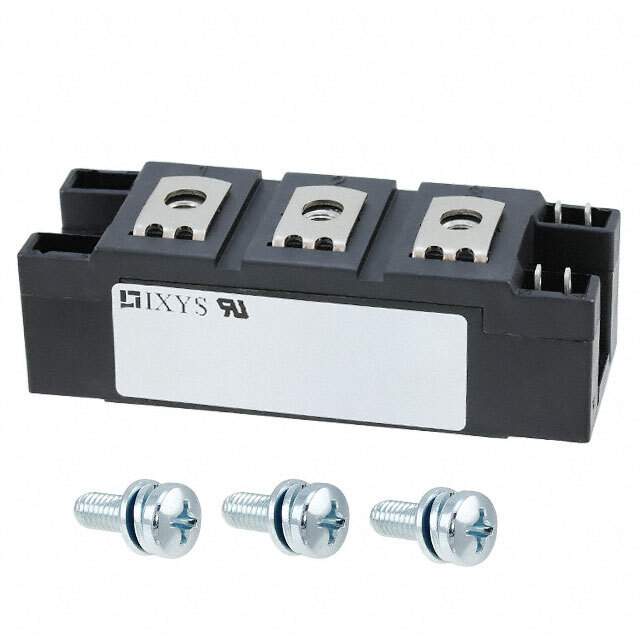

MDD200-16N1 Real Image
Same model may have multiple batches, images only for reference.

MDD200-16N1

Part No MDD200-16N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description High Power Diode Modules DC supply for PWM inverter | DIODE MODULE 1.6KV 224A Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1600V
Current - Average Rectified (Io) (per Diode) 224A
Voltage - Forward (Vf) (Maximum) at If 1.3V at 300A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage at Vr 20mA at 1600V
Mounting Style Chassis Mount
Manufacturer Package Y4-M6
Supplier Device Package Y4-M6
Family Part Number MDD200
Manufacturer Pack Quantity 6
MSL Level 1 (Unlimited)
Win Source Part Number 1221499-MDD200-16N1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MDD200-16N1 CAD Model

Description

The IXYS MDD200-16N1 is a Standard Recovery diode with a voltage rating of 1600V and a current rating of 224A. It is a 1 pair series connection diode which is mounted on a chassis. The diode has a Y4-M6 package and a speed of >500ns with > 200mA (Io). The diode is categorized under Discrete Semiconductor Products and has a medium popularity in the market. The manufacturer pack quantity is 6 and the MSL level is 1 (Unlimited). The diode has a voltage - Forward (Vf) (Maximum) at If of 1.3V at 300A and a current - Reverse Leakage at Vr of 20mA at 1600V.
