Same model may have multiple batches, images only for reference.

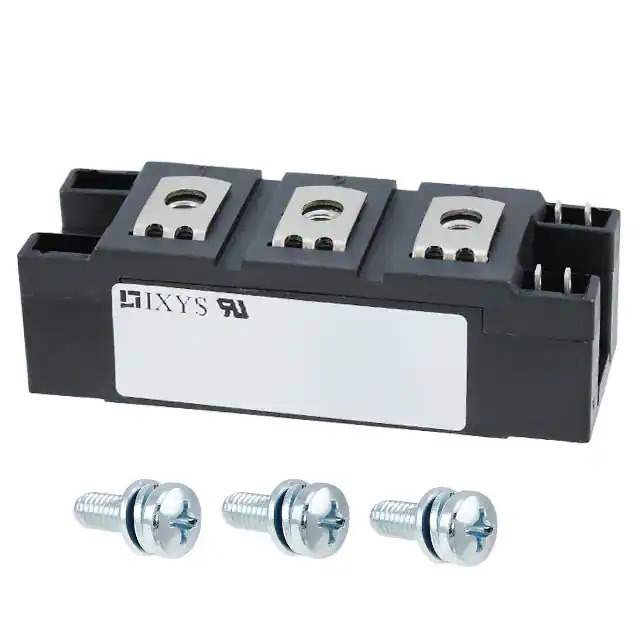

MCC161-22IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC161-22IO1

Part No MCC161-22IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description THERISTER MODULE 2200V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Bulk
Product Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 2.2 kV
Current - On State (It (AV)) (Max) 165 A
Current - On State (It (RMS)) (Max) 300 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 6000A, 6400A
Current - Hold (Ih) (Max) 150 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Y4-M6
Base Product Number MCC161
Standard Package 6 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846930-MCC161-22IO1
Ultra Librarian 3D Model Ultra Librarian MCC161-22IO1 CAD Model

Description

The MCC161-22IO1 is a thyristor SCR module from IXYS.

  • Package: Bulk
  • Standard Package: 6 pcs
  • Hold Current (Ih): 150 mA
  • Off-State Voltage: 2.2 kV
  • Gate Trigger Voltage (Vgt): 2 V
  • Gate Trigger Current (Igt): 150 mA
  • On-State Current (It (AV)): 165 A
  • Non-Repetitive Surge Current (50Hz): 6000A
  • Non-Repetitive Surge Current (60Hz): 6400A
  • Connection Type: Series Connection (2 SCRs)
  • Mounting Type: Chassis Mount
  • Package/Case: Y4-M6
  • Operating Temperature: -40°C to 125°C
  • REACH Status: Unaffected
