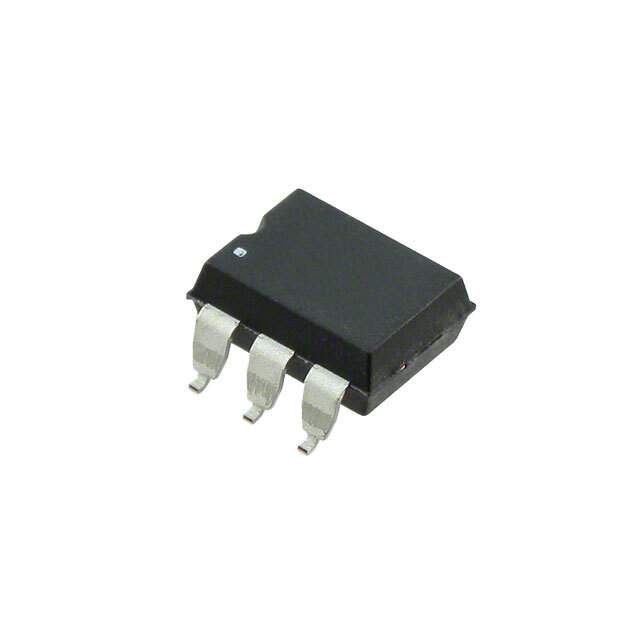

The LCA715STR is a single-pole, normally open (1-Form-A) solid-state relay (SSR) manufactured by IXYS. This device is designed for a variety of switching applications, providing electrical isolation between the control circuit and the load. It offers a reliable and long-lasting alternative to electromechanical relays, with advantages such as faster switching speed, lower power consumption, and no moving parts.

Applications:

• Industrial Control Systems: Switching loads in industrial automation equipment, such as PLCs and motor controllers.
• Security Systems: Controlling access control systems, alarm systems, and surveillance equipment.
• Instrumentation: Switching signals in test and measurement equipment.
• Medical Equipment: Controlling medical devices where electrical isolation and reliability are critical.
• Telecommunications: Switching signals in telecommunication equipment.

Features:

• Single-Pole, Normally Open (1-Form-A) Configuration: Provides a simple on/off switching function.
• Solid-State Design: Offers long life, high reliability, and fast switching speeds.
• Optical Isolation: Provides electrical isolation between the control input and the load.
• Low On-Resistance: Minimizes power dissipation and improves efficiency.
• High Voltage Rating: Supports high-voltage applications.
• Surface Mount Package: Facilitates automated assembly and compact designs.
• RoHS Compliant: Environmentally friendly and compliant with RoHS regulations.

Benefits:

• Improved Reliability: Solid-state design eliminates mechanical wear and tear, increasing reliability and lifespan.
• Faster Switching Speed: Enables high-speed switching, improving system response time.
• Lower Power Consumption: Requires less power to operate compared to electromechanical relays.
• Electrical Isolation: Provides isolation between the control and load circuits, enhancing safety and preventing ground loops.
• Compact Design: Surface mount package allows for smaller and more compact designs.

Additional Details:

The LCA715STR typically features a load voltage rating of up to 60V and a continuous load current rating of around 400mA (consult the datasheet for precise values). The control voltage is typically in the range of 3V to 5V. The on-resistance is typically less than 2 ohms. The isolation voltage is typically 3750Vrms. The device is commonly available in a 6-pin SOIC package. It is designed to operate within a specified temperature range, typically from -40°C to +85°C.

This solid-state relay is suitable for various applications requiring reliable and isolated switching performance. Its solid-state design, optical isolation, and fast switching speed make it a preferred choice over traditional electromechanical relays in many modern electronic systems.
