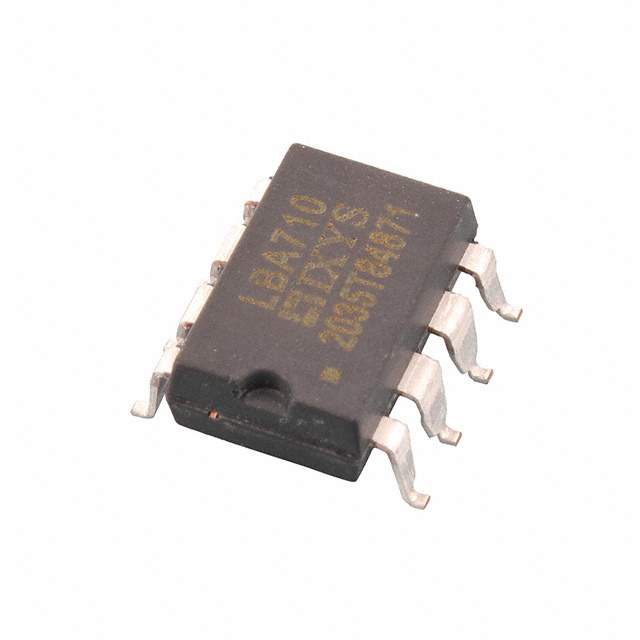

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 22 Weeks
Features Solid State SPST-NO + SPST-NC (1 Form A and B) 8-SMD (0.300", 7.62mm)
Manufacturer IXYS
Series LBA, OptoMOS®
Package Reel - TR
Mounting Surface Mount
Package 8-SMD (0.300", 7.62mm)
Case / Package 8-SMD
Family Name LBA710
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Part Number 212-LBA710SDKR, LBA710S-ND, 212-LBA710SCT, 212-LBA710S
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 876726-LBA710S
Ultra Librarian 3D Model Ultra Librarian LBA710S CAD Model

Description

The IXYS LBA710S is a solid-state SPST-NO + SPST-NC (1 Form A and B) 8-SMD (0.300", 7.62mm) relay that belongs to the LBA, OptoMOS® series.

  • Manufacturer: IXYS
  • Series: LBA, OptoMOS®
  • Relay Type: SPST-NO + SPST-NC (1 Form A and B)
  • Package: reel-TR
  • Quantity per Package: 50
  • Mounting Style: surface mount
  • Package Type: 8-SMD (0.300", 7.62mm)
  • MSL Level: 1 (unlimited)
  • Production Lead Time: 22 weeks
  • REACH Status: unaffected
  • HTSUS: 8536.41.0030
