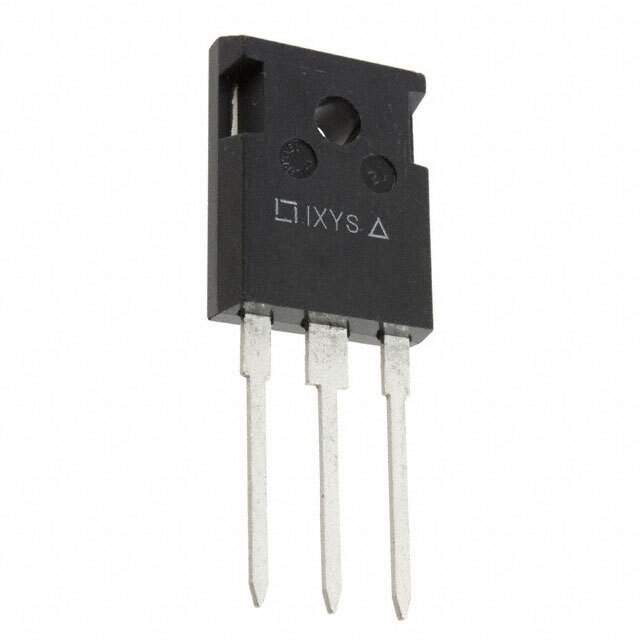

IXDH30N120 Real Image
Same model may have multiple batches, images only for reference.

IXDH30N120

Part No IXDH30N120
Manufacturer IXYS
Catalog IGBTs - Single
Description High Voltage IGBT with optional Diode
Datasheet
IXDH30N120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 60A
Current - Collector Pulsed (Icm) 76A
Vce(on) (Maximum) @ Vge, Ic 2.9V @ 15V, 30A
Power - Max 300W
Switching Energy 4.6mJ (on), 3.4mJ (off)
Input Type Standard
Gate Charge 120nC
Test Condition 600V, 30A, 47 Ohm, 15V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-247AD (IXDH)
Win Source Part Number 1190971-IXDH30N120
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXDH30N120
Introduction Date October 21, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IXDH30N120 CAD Model

Description

The IXDH30N120 is a high power NPT IGBT designed for use in a variety of applications.

  • Power Rating: 300W
  • Current Pulse: Up to 76A
  • Gate Charge: 120nC
  • Vce(on): 2.9V @ 15V and 30A
  • Breakdown Voltage: 1200V
  • Package: TO-3P-3 full pack
  • Applications: Motor control, power supplies, and lighting
