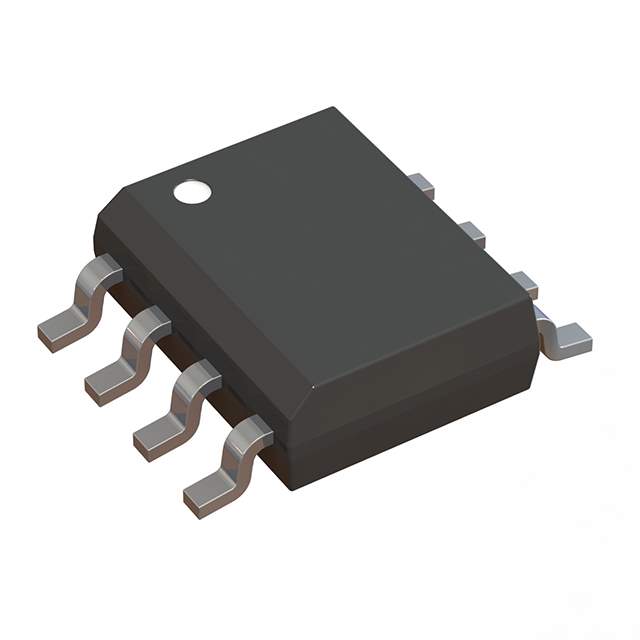

IXDF602SIA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage - Operating 4.5 V to 35 V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Inverting, Non-Inverting
Rise and Fall Time 7.5ns, 6.5ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 1049284-IXDF602SIA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXDF602SIA CAD Model

Description

IXDF602SIA is a dual low-side gate driver IC from IXYS, designed for use in IGBT, N-Channel, and P-Channel MOSFET gate driving applications.

  • Channels: two independent channels
  • Peak Output Current: 2A each
  • Input: inverting or non-inverting
  • Driven Configuration: low-side
  • Logic Voltage Range: 0.8V to 3V
  • Rise Time: 7.5ns
  • Fall Time: 6.5ns
  • Package Type: 8-SOIC
  • Mountable: SMD
  • Operating Temperature Range: -55°C to 150°C
