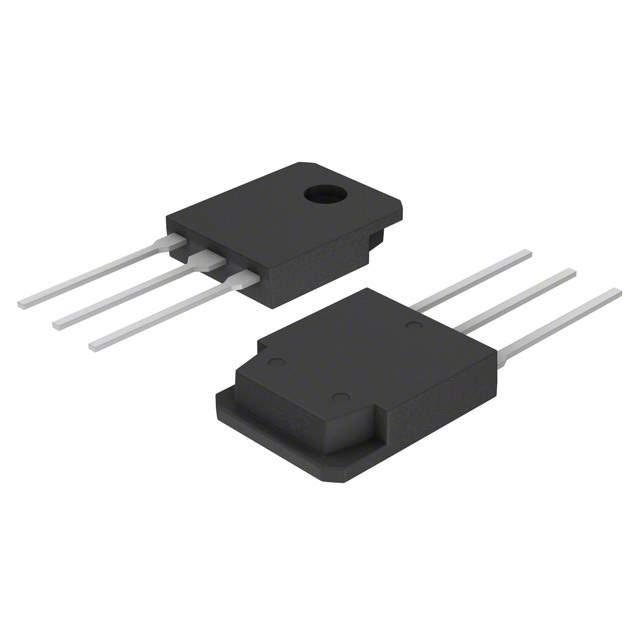

DSSK80-003B Real Image
Same model may have multiple batches, images only for reference.

DSSK80-003B

Part No DSSK80-003B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description Power Schottky Rectifier with common cathode
Datasheet
DSSK80-003B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) @ If 480mV @ 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 40mA @ 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247AD
Win Source Part Number 1170009-DSSK80-003B
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name DSSK80-003B
Introduction Date October 24, 2000
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian DSSK80-003B CAD Model

Description

The DSSK80-003B is a Schottky diode manufactured by IXYS.

  • Application: fast recovery
  • Supply and Demand Status: limited
  • Current: 40A
  • Reverse Voltage: 30V
  • Package: TO-247-3
  • Junction Temperature Range: -55℃ to 150℃
