Same model may have multiple batches, images only for reference.

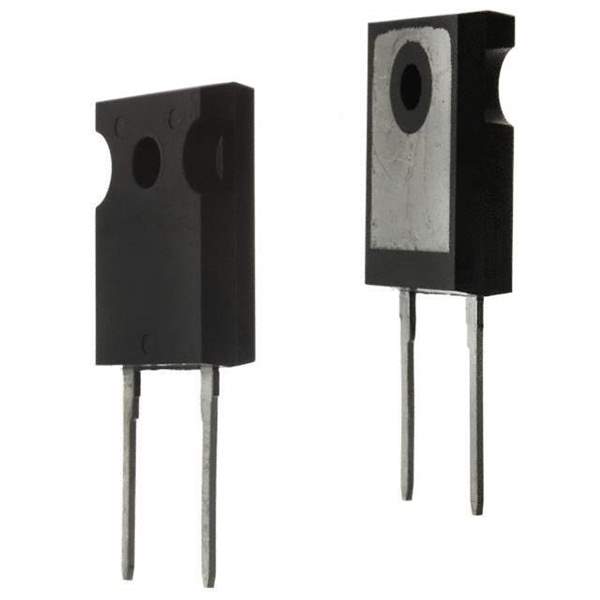

DSI45-16A Real Image
Same model may have multiple batches, images only for reference.

DSI45-16A

Part No DSI45-16A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.6KV 45A TO247AD
Datasheet
DSI45-16A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600V
Current - Average Rectified (Io) 45A
Voltage - Forward (Vf) (Max) @ If 1.28V @ 45A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20μA @ 1600V
Mounting Through Hole
Case / Package TO-247AD
Operating Temperature - Junction -40°C to 175°C
Win Source Part Number 1035221-DSI45-16A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DSI45-16A CAD Model

Description

The DSI45-16A is a standard diode with a maximum DC reverse voltage of 1600V and an average rectified current of 45A. It has a maximum forward voltage of 1.28V @ 45A and a reverse leakage current of 20μA @ 1600V. The DSI45-16A is mounted through a hole and comes in a TO-247AD package. It has a speed (frequency) of standard recovery >500ns, > 200mA (Io). The DSI45-16A is ECCN EAR99 compliant and REACH unaffected. This diode has a wide operating temperature range of -40°C to 175°C and is perfect for use in various electronic applications.
