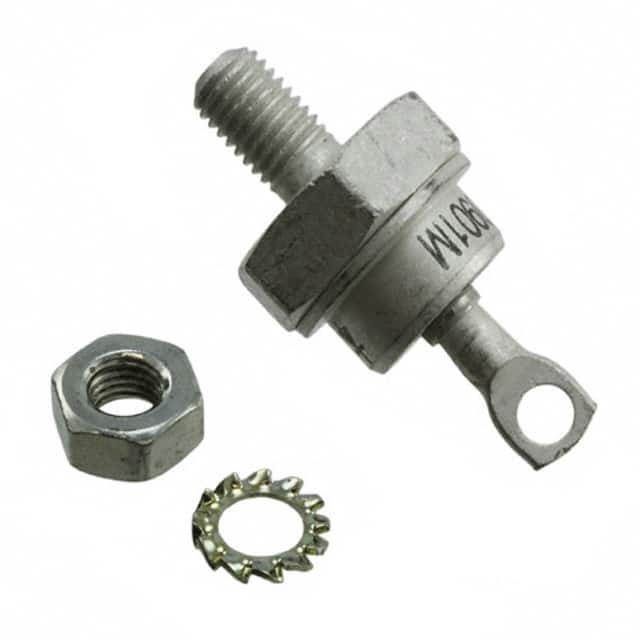

Same model may have multiple batches, images only for reference.
DSA75-16B
Same model may have multiple batches, images only for reference.

DSA75-16B

Part No DSA75-16B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Single
Description DIODE AVAL 1.6KV 110A DO203AB
Datasheet
DSA75-16B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr IXYS
Package Bulk
Product Status Obsolete
Technology Avalanche
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 110A
Voltage - Forward (Vf) (Max) @ If 1.17 V @ 150 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 6 mA @ 1600 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB
Operating Temperature - Junction -40°C ~ 180°C
Base Product Number DSA75
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 848163-DSA75-16B
Ultra Librarian 3D Model Ultra Librarian DSA75-16B CAD Model

Description

The DSA75-16B is a single diode rectifier from IXYS.

  • Maximum Reverse Voltage: 1600 V
  • Average Rectified Current: 110A
  • Forward Voltage: 1.17V @ 150mA
  • Reverse Leakage Current: 6 mA @ maximum reverse voltage
  • Operating Temperature: -40°C to 180°C
  • Mounting Type: Chassis or Stud Mount
  • Package: DO-203AB
  • Applications: Power Supplies, Inverters, Welding Equipment
