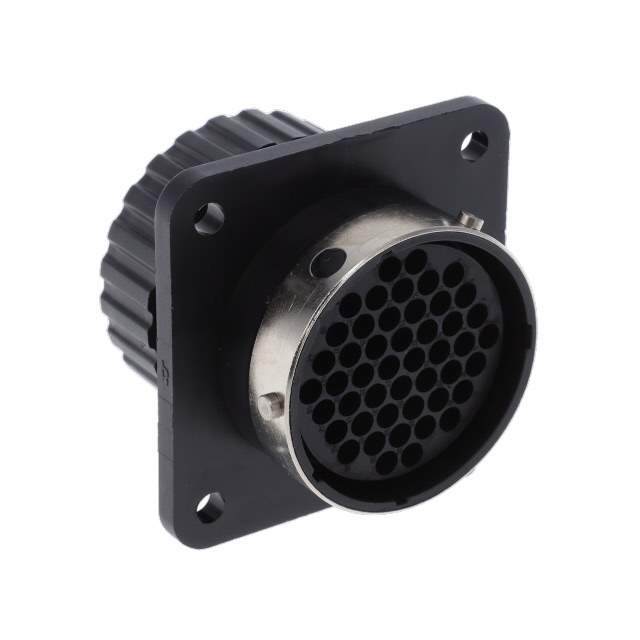

TN0S24-0048S1L Real Image
Same model may have multiple batches, images only for reference.

TN0S24-0048S1L

Part No TN0S24-0048S1L
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors - Housings
Datasheet
TN0S24-0048S1L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr ITT Cannon, LLC
Series Trident Neptune
Package Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 48
Shell Size - Insert 24-0048
Contact Type Crimp, Solder and Solder Cup
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Detent Lock
Shell Material Polyamide (PA), Nylon
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Includes 4 pcs - 1 Connector, 1 Grommet, 1 Nut, 1 O-Ring
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number TN0S2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1315099-TN0S24-0048S1L
Ultra Librarian 3D Model Ultra Librarian TN0S24-0048S1L CAD Model

Description

The TN0S24-0048S1L connector is designed for use in circular connectors - housings from Trident Neptune.

  • Housing Type: receptacle
  • Contact Gender: female sockets
  • Positions: 48
  • Material: polyamide (PA), nylon
  • Mounting: flange mounting, panel mount
  • Fastening Type: detent lock
  • Ingress Protection: IP67 (dust-tight and waterproof)
  • Package: bulk (4 pcs - 1 Connector, 1 Grommet, 1 Nut, 1 O-Ring)
  • Temperature Range: -55°C ~ 105°C
  • RoHS: non-compliant
