Same model may have multiple batches, images only for reference.

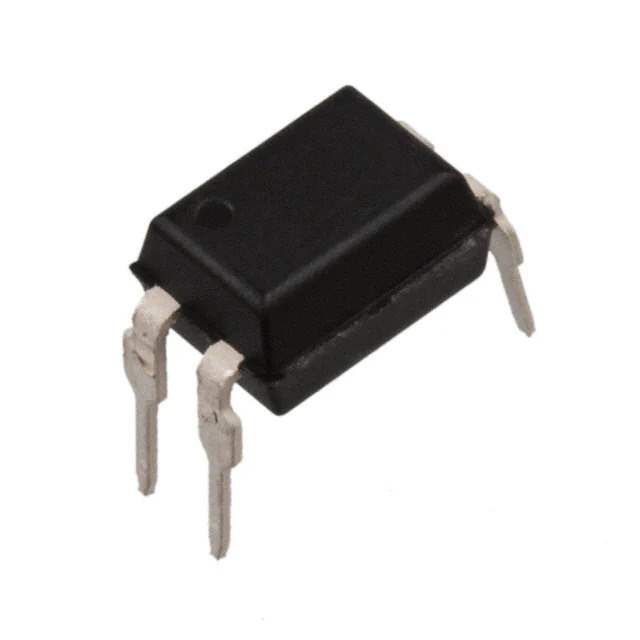

SFH615A-4X Real Image
Same model may have multiple batches, images only for reference.

SFH615A-4X

Part No SFH615A-4X
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5.3KV TRANS 4DIP
Datasheet
SFH615A-4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Isocom Components 2004 LTD
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 160% @ 10mA
Current Transfer Ratio (Max) 320% @ 10mA
Turn On / Turn Off Time (Typ) 6µs, 25µs
Rise / Fall Time (Typ) 4.6µs, 15µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.65V (Max)
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Base Product Number SFH615
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 665393-SFH615A-4X
Ultra Librarian 3D Model Ultra Librarian SFH615A-4X CAD Model

Description

The SFH615A-4X is a transistor output optoisolator in a 4-DIP package.

  • Application: High density
  • Input Signal: DC
  • Isolation Voltage: 5300Vrms
  • Maximum Forward Current: 50mA
  • Rise Time: 4.6μs
  • Fall Time: 15μs
  • Output Type: Transistor
  • Maximum Output Voltage: 70V
  • Operating Temperature Range: -30°C to 100°C
  • Applications: Isolators, optoisolators, and photovoltaic
  • Status: Active
  • Standard Package: 100 pieces
