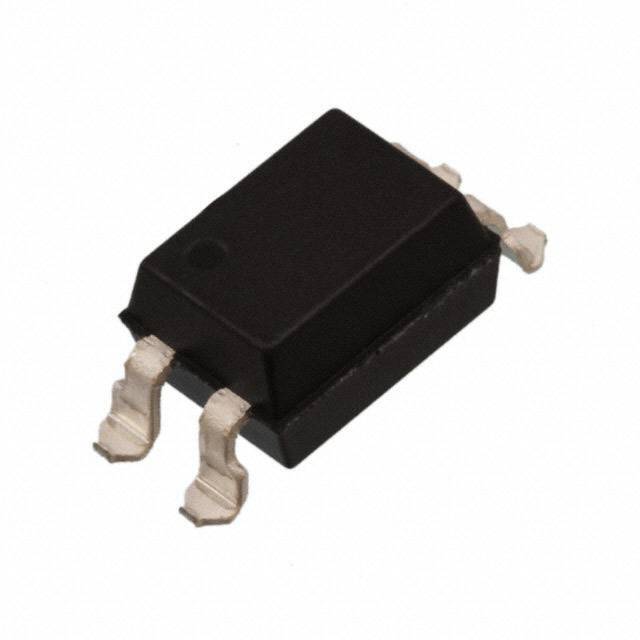

ISP814XSM Isocom Components 2004 LTD
Same model may have multiple batches, images only for reference.

ISP814XSM

Part No ISP814XSM
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV TRANS 4SMD / Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD
Datasheet
ISP814XSM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Isocom Components 2004 LTD
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 20% @ 1mA
Current Transfer Ratio (Maximum) 300% @ 1mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Output Voltage MAX 35V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 200mV
Operating Temperature Range -30°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SMD
Win Source Part Number 777505-ISP814XSM
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name ISP814XSM
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ISP814XSM CAD Model

Description

The ISP814XSM is an electronic component manufactured by Isocom Components 2004 LTD. Isocom Components 2004 LTD

  • Category: Isolators
  • Output Type: Optoisolator transistor
  • Voltage Isolation: 5300Vrms
  • Number of Channels: 1
  • Operating Temperature: -30°C ~ 100°C
  • Mounting Type: SMD
  • Output Voltage Max: 35V
  • Output Current Per Channel: 50mA
  • Quantity Per Package: 2k pcs
