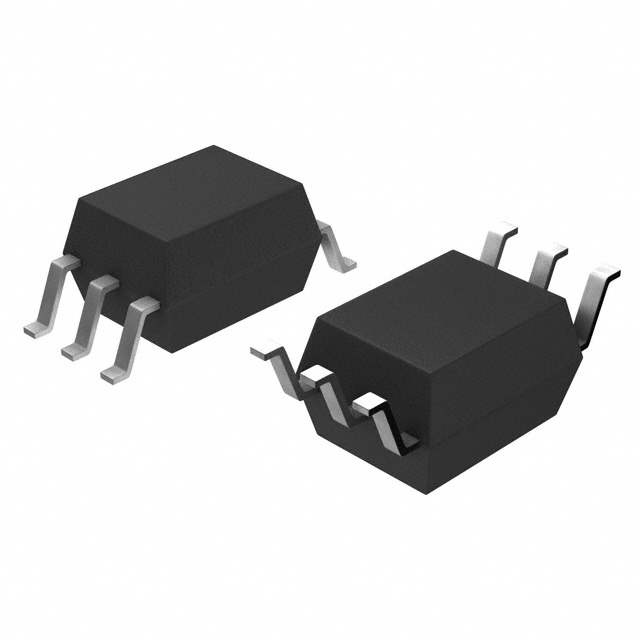

IS314W

Name: IS314W
Brand: Isocom Components 2004 LTD
SKU: 849441
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IS314W
Manufacturer	Isocom Components 2004 LTD
Catalog	Isolators - Gate Drivers
Description	OPTOISO 5KV 1CH GATE DRIVER 6SO
Datasheet	IS314W Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Isolators - Gate Drivers
Mfr	Isocom Components 2004 LTD
Package	Tape & Reel
Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	35ns, 35ns
Current - Output High, Low	800mA, 800mA
Current - Peak Output	1A
Voltage - Forward (Vf) (Typ)	1.37V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	10V ~ 30V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO Stretched
Base Product Number	IS314
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	849441-IS314W
Ultra Librarian 3D Model	Ultra Librarian IS314W CAD Model

Description

The 849441-IS314W is a gate driver optoisolator designed for high-speed applications. Manufactured by Isocom Components 2004 LTD.

Category: Isolators - Gate Drivers
Voltage Isolation: 5000Vrms
Current Output High: 800mA
Current Output Low: 800mA
Forward Current: 25mA
Forward Voltage: 1.37V
Rise/Fall Time: 35ns (Typical)
Channels: Single
Mounting Type: Surface Mount
Package: 6-SOIC
Operating Temperature Range: -40°C to 105°C
Status: Active
