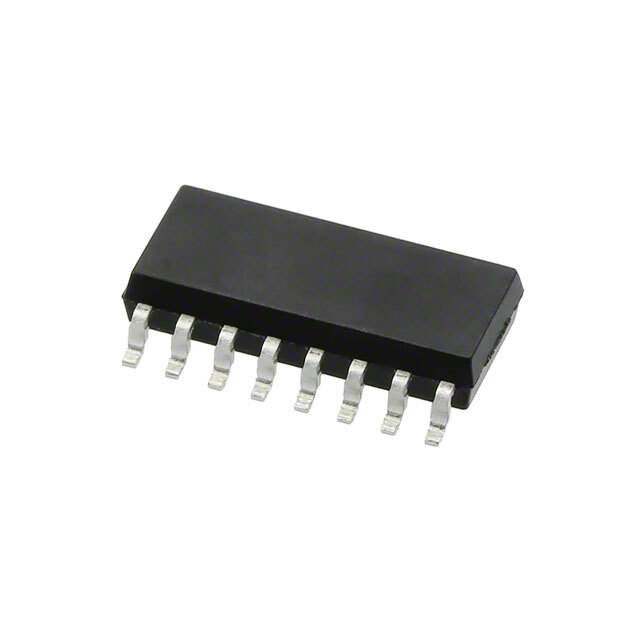

IS2801-4 Real Image
Same model may have multiple batches, images only for reference.

IS2801-4

Part No IS2801-4
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3KV 4CH TRANS  /  Optoisolator Transistor Output 3000Vrms 4 Channel
Datasheet
IS2801-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Isocom Components 2004 LTD
Package Tape & Reel
Number of Channels 4
Voltage - Isolation 3000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.173", 4.40mm Width)
Base Product Number IS2801
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names IS2801-4CT,IS2801-4DKR,Q3506104AB,IS2801-4TR
Standard Package 2,000
Win Source Part Number 977611-IS2801-4
Ultra Librarian 3D Model Ultra Librarian IS2801-4 CAD Model

Description

The Isocom Components 2004 LTD 977611-IS2801-4 is a photovoltaic output optoisolator with a transistor output type.

  • Package: tape and reel
  • Quantity: 2,000
  • Mounting: SMD
  • Channels: four
  • Current Output: 50mA
  • Current Transfer Ratio: 50% @ 5mA (maximum of 600% @ 5mA)
  • Forward Voltage: 1.2V
  • Voltage Isolation: 3000Vrms
  • Rise/Fall Time: 3µs/4µs
  • Vce Saturation: 400mV
  • Maximum Output Voltage: 80V
  • Operating Temperature Range: -55°C to 110°C
  • RoHS Compliant: yes
  • REACH: unaffected
