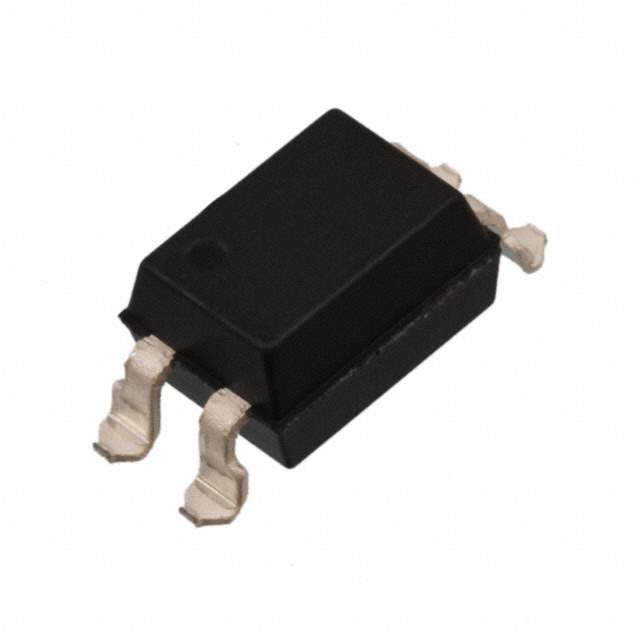

The IS181B is a high-performance single-channel optocoupler manufactured by Isocom Components 2004 LTD. This device provides electrical isolation between input and output circuits, protecting sensitive components from high voltages and noise. It's widely used in industrial control systems, power supplies, and communication equipment.

Applications:

• Industrial Control Systems: Provides isolation between control circuits and high-voltage power circuits.
• Power Supplies: Isolates the primary and secondary sides of switched-mode power supplies.
• Communication Equipment: Used in data transmission systems for signal isolation and noise reduction.
• Microprocessor Systems: Provides isolation between microprocessors and peripheral devices.
• Medical Equipment: Ensures patient safety by isolating sensitive electronic circuits.

Features:

• High Isolation Voltage: Provides a high level of electrical isolation between input and output.
• High Current Transfer Ratio (CTR): Ensures efficient signal transfer.
• Low Input Current: Reduces power consumption.
• Fast Switching Speed: Enables high-speed data transmission.
• Compact Package: Saves board space.
• RoHS Compliant: Complies with environmental regulations.

Benefits:

• Enhanced Safety: Protects equipment and personnel from high voltages.
• Improved Noise Immunity: Reduces noise interference and ensures signal integrity.
• Reliable Performance: Provides stable and consistent operation.
• Simplified Design: Reduces design complexity and component count.
• Cost-Effective Solution: Offers a competitive price-performance ratio.

Additional Details:

The IS181B optocoupler consists of an infrared emitting diode (IRED) and a silicon NPN phototransistor. When current flows through the IRED, it emits infrared light, which activates the phototransistor, allowing current to flow in the output circuit. The isolation voltage typically ranges from 3750VRMS to 5000VRMS. The current transfer ratio (CTR) varies depending on the specific variant, typically ranging from 50% to 600%. The forward voltage of the IRED is typically 1.2V, and the collector-emitter voltage of the phototransistor is typically 80V. The operating temperature range is typically -55°C to +100°C. It's available in DIP packages.
