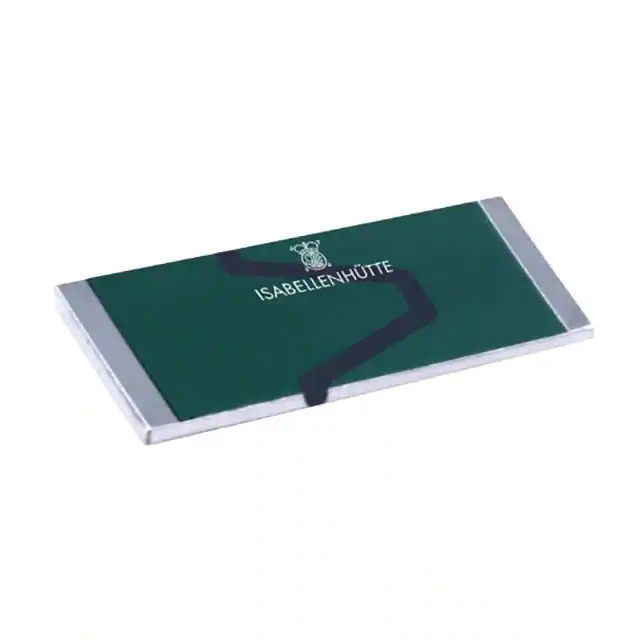

VMS-R100-1.0-U Isabellen
Same model may have multiple batches, images only for reference.

VMS-R100-1.0-U

Part No VMS-R100-1.0-U
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 4W 2512
Datasheet
VMS-R100-1.0-U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series VMS
Package Tape & Reel
Product Status Active
Resistance 100 MOhms
Tolerance ±1%
Power (Watts) 4W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient 20ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.120" W (6.35mm x 3.05mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375241-VMS-R100-1.0-U
Ultra Librarian 3D Model Ultra Librarian VMS-R100-1.0-U CAD Model

Description

The 1375241-VMS-R100-1.0-U is a chip resistor designed for surface mount applications.

  • Series: VMS
  • Manufacturer: Isabellenhuette USA
  • Resistance: 100 MOhms
  • Tolerance: ±1%
  • Power (Watts): 4W
  • Temperature Coefficient: 20ppm/°C
  • Size / Dimension: 0.250" L x 0.120" W (6.35mm x 3.05mm)
  • Height - Seated (Max): 0.022" (0.55mm)
  • Applications: Moisture Resistant, Pulse Withstands, Automotive
  • Package / Case: 2512 (6432 Metric)
  • Packaging: Tape & Reel (TR)
  • Automotive: AEC-Q200
  • REACH Status: Unaffected
  • Mounting Type: Surface Mount
