Same model may have multiple batches, images only for reference.

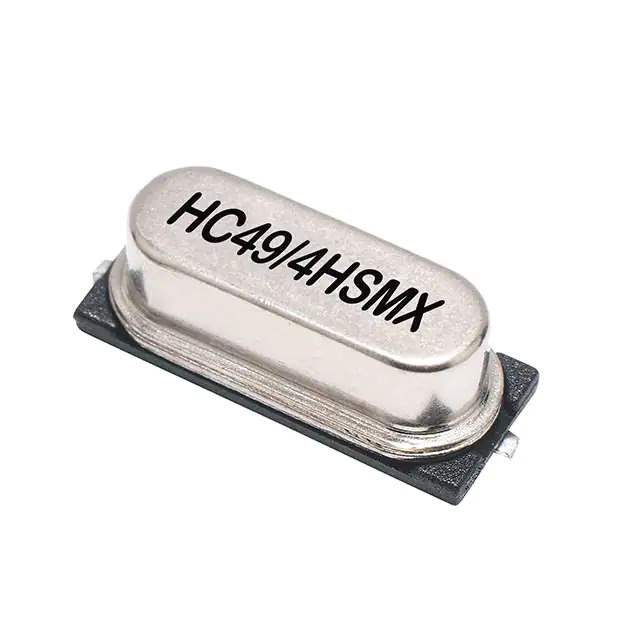

LFXTAL003071REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL003071REEL

Part No LFXTAL003071REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 4.0000MHZ 16PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr IQD Frequency Products Ltd
Series HC49/4HSMX
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 4 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 130 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Max) 0.169" (4.30mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
California Prop 65 Warning Information
Win Source Part Number 877068-LFXTAL003071REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL003071REEL CAD Model

Description

The 877068-LFXTAL003071REEL is a 4 MHz crystal from the HC49/4HSMX series.

  • Frequency: 4 MHz
  • Series: HC49/4HSMX
  • Mounting Type: Surface Mount
  • Size: 0.449" L x 0.150" W (11.40mm x 3.80mm)
  • Height: 0.169" (4.30mm)
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 16pF
  • Operating Temperature Range: -10°C to 60°C
  • Manufacturer: IQD Frequency Products Ltd
  • Product Status: Active
