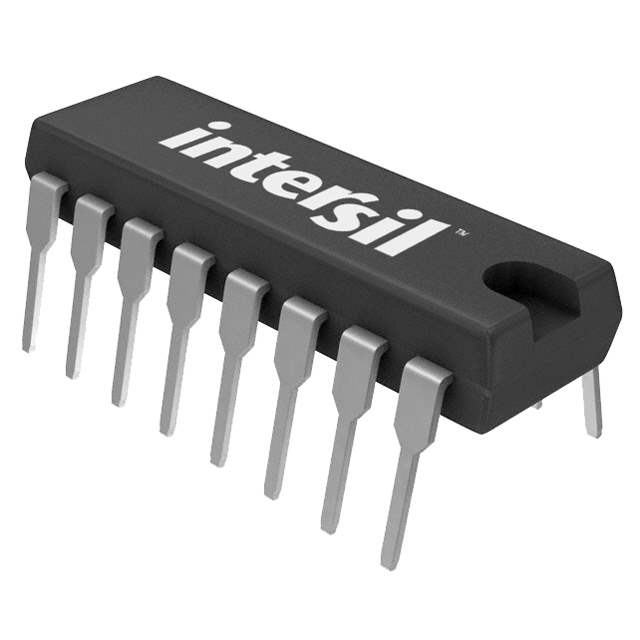

HIP4082IPZ

Name: HIP4082IPZ
Brand: Intersil
SKU: 145781
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HIP4082IPZ
Manufacturer	Intersil
Catalog	PMIC - Gate Drivers
Description	IC DRIVER FET H-BRIDGE 16DIP
Datasheet	HIP4082IPZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Intersil
Packaging	Tube/Rail
Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	4
Gate Type	N-Channel MOSFET
Supply Voltage - Operating	8.5 V to 15 V
Logic Voltage - VIL, VIH	1V, 2.5V
Current - Peak Output (Source, Sink)	1.4A, 1.3A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	95V
Rise and Fall Time	9ns, 9ns
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	Through Hole
Case / Package	16-PDIP
Win Source Part Number	068118-HIP4082IPZ
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HIP4082IPZ CAD Model

Description

The HIP4082IPZ is an independent channel type half-bridge IC manufactured by Intersil. It comes in a 16-PDIP case/package and has a through-hole mounting style.

Channel Type: Independent
Configuration: Half-bridge
Manufacturer: Intersil
Package: 16-PDIP
Mounting Style: Through-hole
Input Type: Non-inverting
Gate Type: N-channel MOSFET
Supply Voltage: 8.5V to 15V
High Side Voltage: 95V (max)
Rise and Fall Time: 9ns
