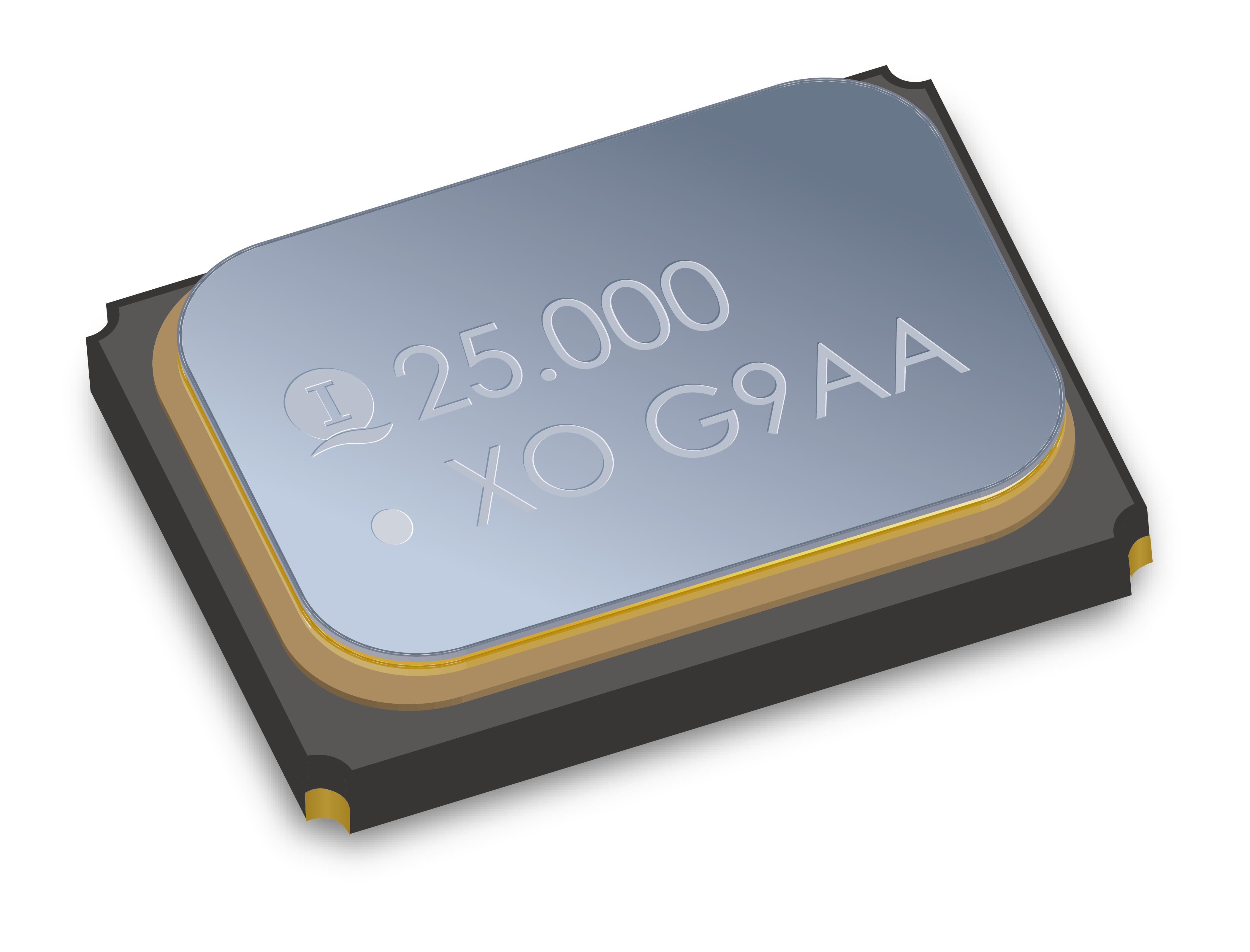

Same model may have multiple batches, images only for reference.

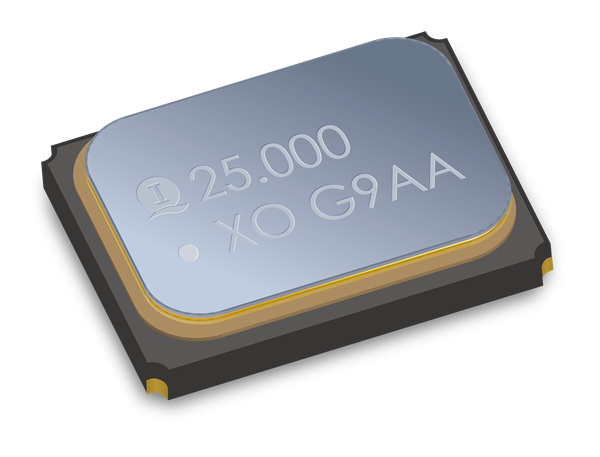

2631-12005-BVKQYA Interquip Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

2631-12005-BVKQYA

Part No 2631-12005-BVKQYA
Manufacturer Interquip Electronics
Catalog Oscillators
Description Oscillator 12.000MHz 3.3V 163-B Series
Datasheet
2631-12005-BVKQYA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Size 3.2x2.5mm
Output Waveform CMOS
Frequency Range 32.768KHz, 1MHz ~50MHz, 50MHz ~ 160MHz
Supply Voltage Range(Vdd) 1V ~ 5V
Overall Frequency Stability ±25ppm, ±30ppm, ±50ppm or specify
Operating Temperature Range -20°C ~ +70°C, -40°C ~ +85°C, -40°C ~ +125°C
Current Consumption (Idd) 100uA Max., 10mA Max.
Rise & Fall Time 20ns Max., 8ns Max., 3ns Max.
Output Symmetry 45% ~ 55%
Output Voltage VOH 90% VDD,VOL 10% VDD
Output Load 15pF
Start-up Time 10ms Max.
Storage Temperature Range -55°C ~ +125°C
Ultra Librarian 3D Model Ultra Librarian 2631-12005-BVKQYA CAD Model

Description

Small size|Low phase noise version available|Low current consumption version available|Conforms to AEC-Q100 (Optional)|RoHS Compliant and Pb Free
