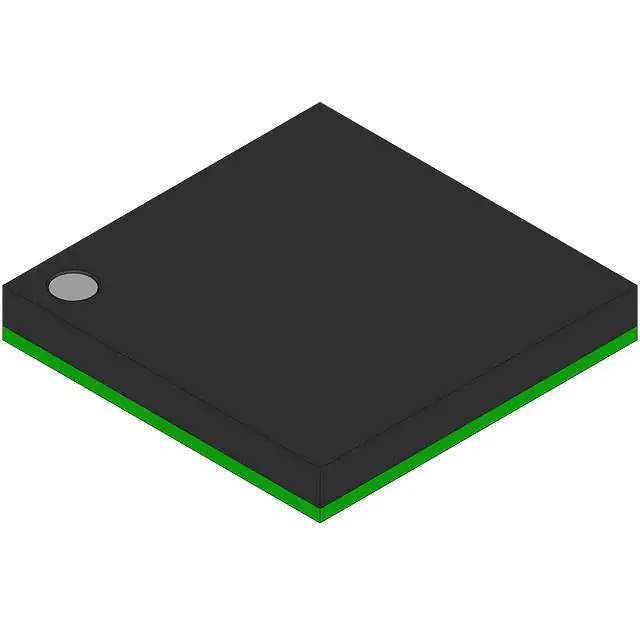

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series Numonyx™
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 32Mbit
Memory Organization 2M x 16
Memory Interface CFI
Write Cycle Time - Word, Page 90ns
Access Time 90 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 64-TBGA
Supplier Device Package 64-EasyBGA (10x13)
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 291109-RC28F320C3TD90
Ultra Librarian 3D Model Ultra Librarian RC28F320C3TD90 CAD Model

Description

The 291109-RC28F320C3TD90 is a memory chip from the Numonyx™ series by Intel.

  • Memory Type: 32Mbit FLASH memory chip with a boot block technology
  • Operating Voltage: 2.7V to 3.6V
  • Mounting Type: surface mount technology
  • Package: bulk package with a standard package of 2,000 pieces
  • Temperature Range: -40°C to 85°C
  • Product Status: active product from Intel
  • Memory Solution: non-volatile memory solution
  • Memory Organization: 2M x 16
  • Interface: CFI interface
  • Write Cycle Time: 90ns
  • Common Use: applications that require reliable and high-speed data storage, such as automotive, industrial, and consumer electronics.
