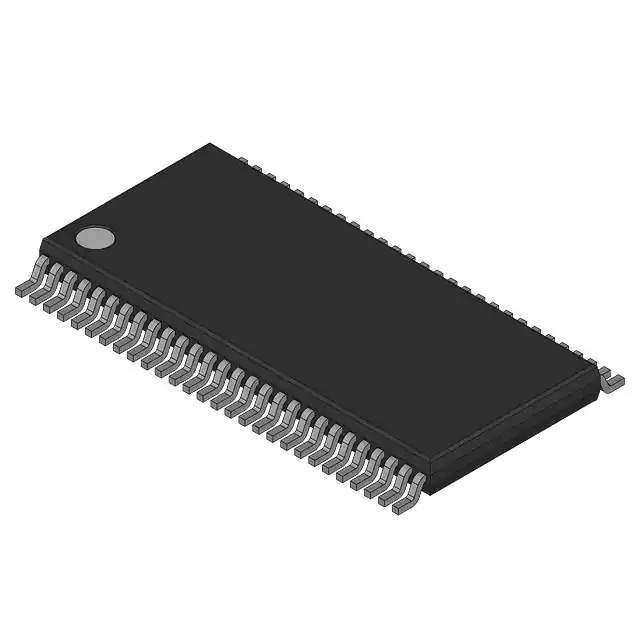

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series StrataFlash™
Package Tray
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 128Mbit
Memory Organization 8M x 16
Memory Interface Parallel
Clock Frequency 40 MHz
Write Cycle Time - Word, Page 85ns
Access Time 85 ns
Voltage - Supply 1.7V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 56-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 56-TSOP
Base Product Number JS28F128P30
Standard Package 576 pcs
ECCN 3A991B1A
HTSUS 8542.32.0051
Win Source Part Number 876237-JS28F128P30B85A
Ultra Librarian 3D Model Ultra Librarian JS28F128P30B85A CAD Model

Description

The JS28F128P30B85A is a memory IC from the StrataFlash™ series.

  • Memory Type: Non-Volatile
  • Technology: NOR Flash
  • Memory Size: 128Mbit
  • Access Time: 85ns
  • Operating Voltage: 1.7V to 2V
  • Mounting Type: Surface Mount
  • Package / Case: 56-TFSOP (0.724", 18.40mm Width)
  • Supplier Device Package: 56-TSOP
  • Operating Temperature: -40°C to 85°C
  • Memory Format: FLASH
  • Clock Frequency: 40 MHz
  • Write Cycle Time: 85ns (Word/Page)
  • Memory Interface: Parallel
  • HTSUS: 8542.32.0051
  • Manufacturer: Intel
