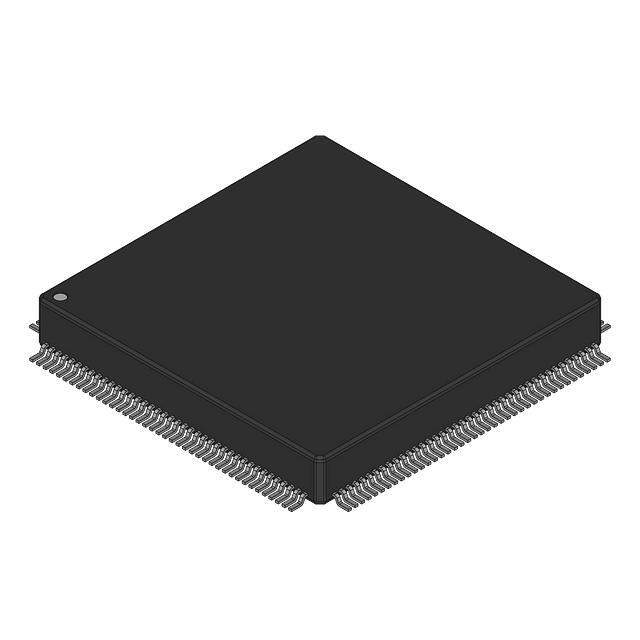

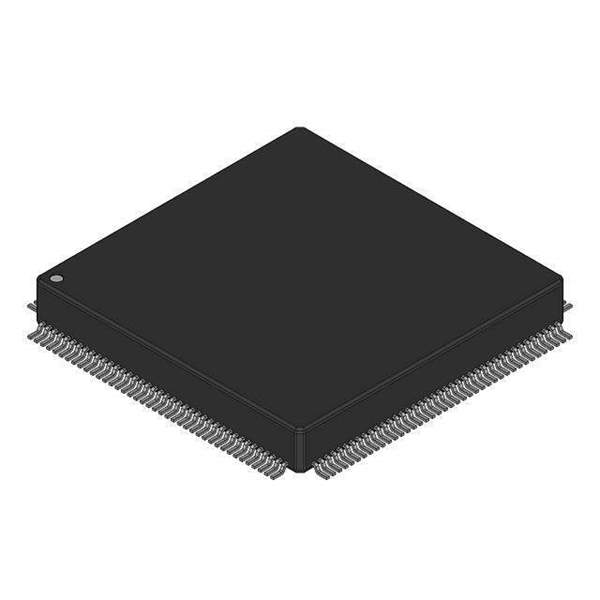

EPM7128SQC160-6N Real Image
Same model may have multiple batches, images only for reference.

EPM7128SQC160-6N

Part No EPM7128SQC160-6N
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 128MC 6NS 160QFP
Datasheet
EPM7128SQC160-6N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>CPLDs (Complex Programmable Logic Devices)
Manufacturer Intel
Packaging Tray
Product Status Obsolete
Programmable Type In System Programmable
Delay Time tpd(1) Max 6 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 8
Number of Macrocells 128
Number of Gates 2500
Number of I/O 100
Temperature Range - Operating 0°C ~ 70°C
Mounting Surface Mount
Case / Package 160-BQFP
Supplier Device Package 160-PQFP (28x28)
Base Product Number EPM7128
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
Other Part Number 973429
Standard Package 24
Win Source Part Number 1321787-EPM7128SQC160-6N
Ultra Librarian 3D Model Ultra Librarian EPM7128SQC160-6N CAD Model

Description

The Intel EPM7128SQC160-6N is a complex programmable logic device (CPLD) that features 2500 gates, 128 macrocells, and 100 input/output pins.

  • Gates: 2500
  • Macrocells: 128
  • Input/Output Pins: 100
  • Programmable: In-system
  • Delay Time: Up to 6 ns
  • Voltage Supply Range: 4.75V to 5.25V
  • Temperature Range: 0°C to 70°C
  • Package: 160-PQFP (28x28)
