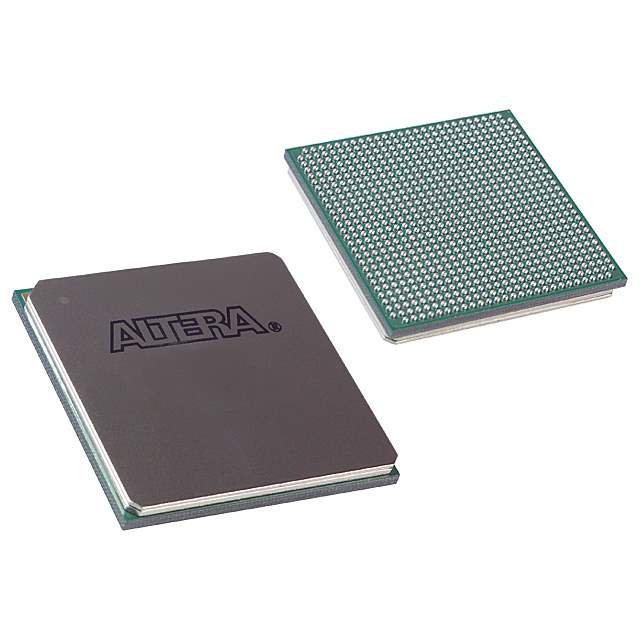

The EP2SGX60DF780I4 is a Stratix II GX FPGA (Field Programmable Gate Array) from Intel (formerly Altera). FPGAs are semiconductor devices containing programmable logic components called “logic blocks”, and programmable interconnects. They can be reconfigured to desired application or functionality requirements, allowing flexibility and customization.

Applications

• High-speed data communication: Used in networking equipment such as routers, switches, and line cards.
• Image and video processing: Found in video surveillance systems, medical imaging devices, and broadcast equipment.
• Wireless communication: Employed in base stations, software-defined radios, and satellite communication systems.
• Aerospace and defense: Used in radar systems, electronic warfare systems, and guidance control.
• Industrial automation: Incorporated in programmable logic controllers (PLCs), motor control systems, and machine vision systems.

Features

• High-speed transceivers: Supports data rates up to 6.5 Gbps for high-bandwidth applications.
• Programmable logic: Provides flexible logic resources for implementing custom digital circuits.
• Embedded memory: Offers on-chip memory blocks for data storage and processing.
• DSP blocks: Includes dedicated digital signal processing blocks for high-performance signal processing.
• Clock management: Features a robust clock management system for precise timing control.

Benefits

• Increased system performance: High-speed transceivers enable faster data transfer rates.
• Design flexibility: Programmable logic allows for customization and adaptation to changing requirements.
• Reduced system cost: Integration of memory and DSP blocks reduces the need for external components.
• Faster time to market: Reconfigurable architecture enables rapid prototyping and development.
• Improved power efficiency: Advanced power management features minimize power consumption.

Specifications

Key specifications for the EP2SGX60DF780I4 include:

• Logic Elements: Approximately 60,000
• Embedded Memory (Mbits): Approximately 5 Mbits
• Transceiver Data Rate: Up to 6.5 Gbps
• I/O Pins: 780
• Operating Temperature Range: -40°C to +100°C (Industrial)
• Package Type: FineLine BGA (FBGA)

The Stratix II GX family, including the EP2SGX60DF780I4, offers a robust platform for high-performance applications requiring flexible and scalable logic resources. The integration of high-speed transceivers, embedded memory, and DSP blocks enables designers to create sophisticated digital systems with optimized performance and power efficiency.
