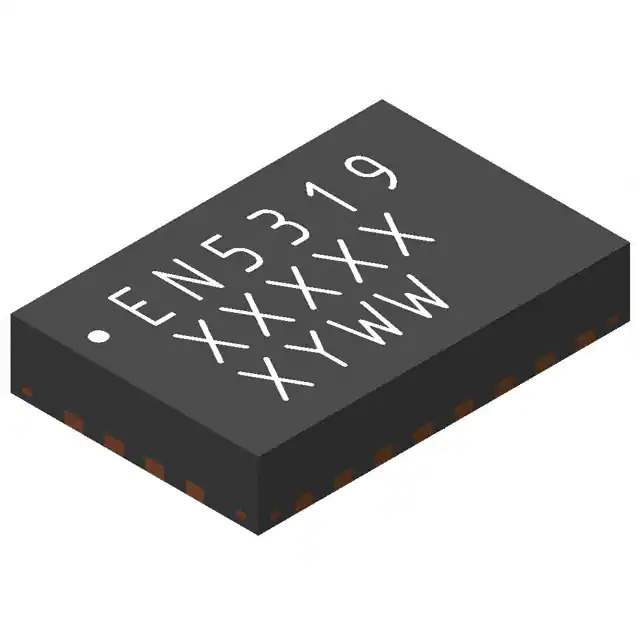

EN5319QI

Name: EN5319QI
Brand: Intel
SKU: 589347
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	EN5319QI
Manufacturer	Intel
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-5.05V
Datasheet	EN5319QI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Intel
Series	Enpirion® 5300
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.4V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.6 ~ 5.05V
Current - Output (Max)	1.5A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Surface Mount
Package / Case	24-PowerTQFN Module
Size / Dimension	0.24" L x 0.16" W x 0.04" H (6.0mm x 4.0mm x 1.1mm)
Supplier Device Package	24-QFN (6x4)
Control Features	Enable, Active High
Base Product Number	EN5319
Standard Package	500 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	589347-EN5319QI
Ultra Librarian 3D Model	Ultra Librarian EN5319QI CAD Model

Alternative Products

Description

The 589347-EN5319QI is a non-isolated point-of-load (PoL) DC-DC converter module from Intel's Enpirion® 5300 series.

Size: 6.0mm x 4.0mm x 1.1mm
Current Output: 1.5A
Input Voltage Range: 2.4V to 5.5V
Output Voltage Range: 0.6V to 5.05V
Protection: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), Short Circuit Protection (SCP), Undervoltage Lockout (UVLO)
Application: Commercial Information Technology Equipment (ITE)
