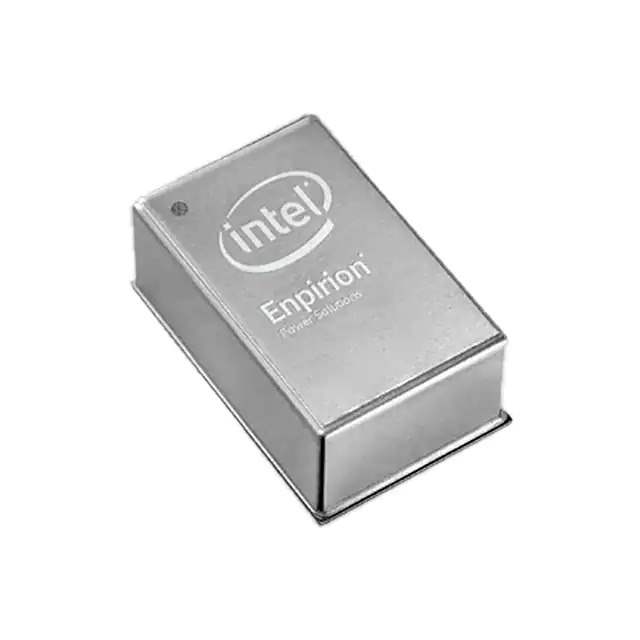

Same model may have multiple batches, images only for reference.

EM2140P01QI

Name: EM2140P01QI
Brand: Intel
SKU: 822477
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EM2140P01QI
Manufacturer	Intel
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.7-1.325V
Datasheet	EM2140P01QI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Intel
Series	Enpirion® 2140
Package	Tray
Product Status	Obsolete
Type	Non-Isolated PoL Module, Digital
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	16V
Voltage - Output 1	0.7 ~ 1.325V
Current - Output (Max)	40A
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	90%
Mounting Type	Surface Mount
Package / Case	104-PowerBQFN Module
Size / Dimension	0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package	100-QFN (17x11)
Base Product Number	EM2140
Standard Package	112 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	822477-EM2140P01QI
Ultra Librarian 3D Model	Ultra Librarian EM2140P01QI CAD Model

Alternative Products

Description

The 822477-EM2140P01QI is a non-isolated PoL (Point of Load) module designed for power supply applications.

Series: Enpirion 2140
Dimensions: 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Maximum Output Current: 40A
Input Voltage Range: 4.5V to 16V
Output Voltage: 0.7V to 1.325V
Efficiency: 90%
Mounting Type: Surface Mount
Package: 104-PowerBQFN module
Manufacturer: Intel
Status: Obsolete
