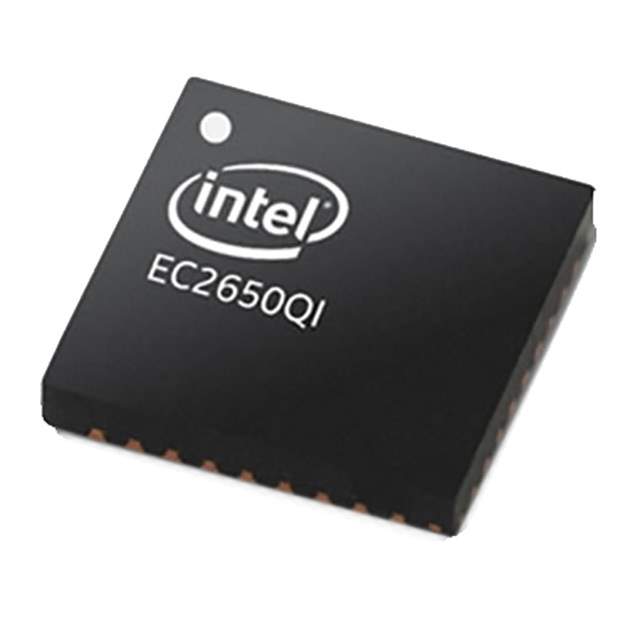

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Intel
Series Enpirion® 2650
Package Tape & Reel
Product Status Obsolete
Type Intermediate Bus Converter
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 4 ~ 6.5V
Current - Output (Max) 6A
Power (Watts) 39 W
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 94%
Mounting SMD (SMT)
Package / Case 36-PowerVFQFN Module
Dimension 0.22" L x 0.22" W x 0.03" H (5.5mm x 5.5mm x 0.9mm)
Supplier Device Package 36-QFN (5.5x5.5)
Base Product Number EC2650
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 544-3619-ND,544-3619-1,544-3619,544-3619-6,544-3619-2
Standard Package 1,000
Win Source Part Number 1168324-EC2650QI
Ultra Librarian 3D Model Ultra Librarian EC2650QI CAD Model

Description

This Enpirion 2650 DC-DC converter from Intel is an intermediate bus converter suitable for use in ITE (Commercial) applications.

  • Output: Single
  • Power: 39W
  • Maximum Current Output: 6A
  • Voltage Input: 8V to 13.2V
  • Voltage Output: 4V to 6.5V
  • Package: 36-PowerVFQFN module
  • Supplier Device Package: 36-QFN (5.5x5.5)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Protection: OCP, OTP, OVP, SCP, and UVLO
