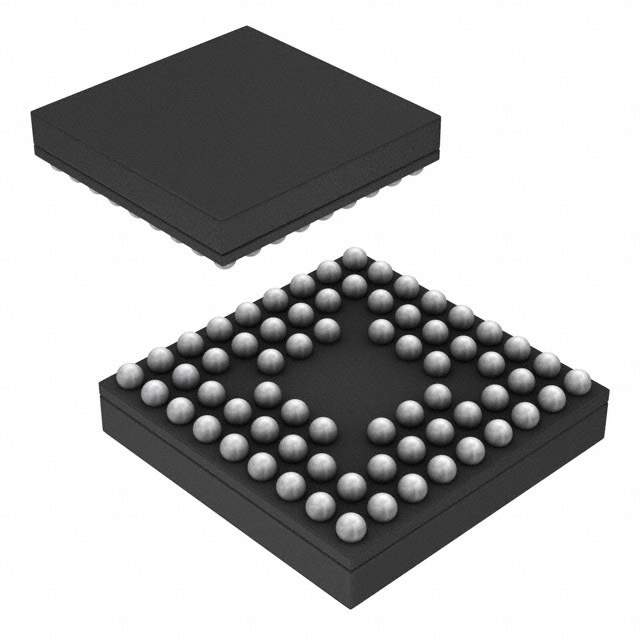

5M80ZM68I5N Real Image
Same model may have multiple batches, images only for reference.

5M80ZM68I5N

Part No 5M80ZM68I5N
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 64MC 7.5NS 68MBGA
Datasheet
5M80ZM68I5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® V
Package Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 80
Number of Macrocells 64
Number of I/O 52
Temperature Range - Operating -40°C ~ 100°C (TJ)
Mounting SMD (SMT)
Package / Case 68-TFBGA
Supplier Device Package 68-MBGA (5x5)
Base Product Number 5M80Z
Other Names 973799,5M80ZM68I5N,544-3568
Standard Package 640
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1265170-5M80ZM68I5N
Ultra Librarian 3D Model Ultra Librarian 5M80ZM68I5N CAD Model

Description

The 5M80ZM68I5N is a Complex Programmable Logic Device (CPLD) from Intel.

  • Series: MAX® V series
  • Logic Elements/Blocks: 80
  • Macrocells: 64
  • I/O: 52
  • Programmable: In System Programmable
  • Delay Time tpd(1) Max: 7.5 ns
  • Voltage Supply: 1.71V to 1.89V
  • Package: 68-TFBGA package
  • Temperature Range: -40°C to 100°C
