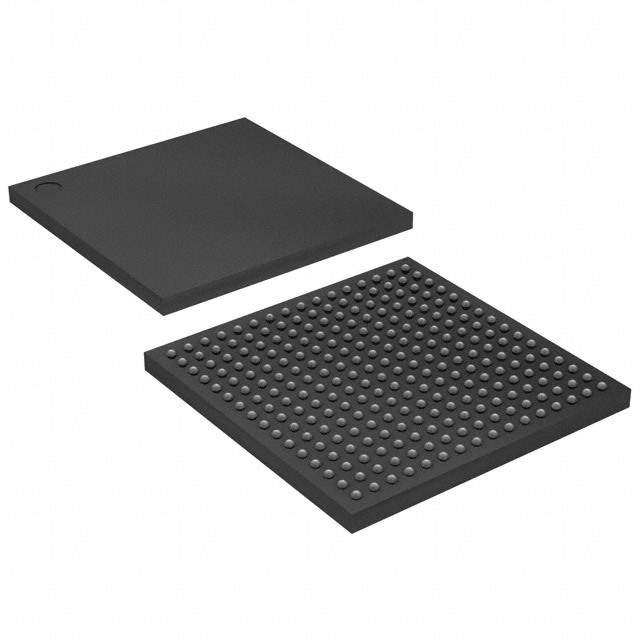

5M570ZF256C4N Real Image
Same model may have multiple batches, images only for reference.

5M570ZF256C4N

Part No 5M570ZF256C4N
Manufacturer Intel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 440MC 9NS 256FBGA /
Datasheet
5M570ZF256C4N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® V
Package Tray
Programmable Type In System Programmable
Delay Time tpd(1) Max 9 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 159
Temperature Range - Operating 0°C ~ 85°C (TJ)
Mounting SMD (SMT)
Package / Case 256-LBGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number 5M570Z
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 544-3572,968408,5M570ZF256C4N-ND,-5M570ZF256C4N
Standard Package 90
Win Source Part Number 1010240-5M570ZF256C4N
Ultra Librarian 3D Model Ultra Librarian 5M570ZF256C4N CAD Model

Description

This integrated circuit (IC) is part of the MAX® V series and has a Win Source Part Number of 1010240-5M570ZF256C4N.

  • Win Source Part Number: 1010240-5M570ZF256C4N
  • Package: Tray
  • Standard Package: 90
  • Mounting: Surface-mount device (SMD)
  • I/Os: 159
  • Programmable: In-system
  • Delay Time tpd(1) max: 9ns
  • Voltage Supply: 1.71V to 1.89V
  • Logic Elements/Blocks: 570
  • Macrocells: 440
  • Package/Case: 256-LBGA
  • Supplier Device Package: 256-FBGA (17x17)
  • Temperature Range: 0°C to 85°C (TJ)
  • Moisture Sensitivity Level (MSL): 3 (168 hours)
  • REACH: Unaffected
  • Harmonized Tariff Schedule of the United States (HTSUS): 8542.39.0001
  • Manufacturer: Intel
  • Other Names: 544-3572, 968408, 5M570ZF256C4N-ND, -5M570ZF256C4N
  • Base Product Number: 5M570Z
