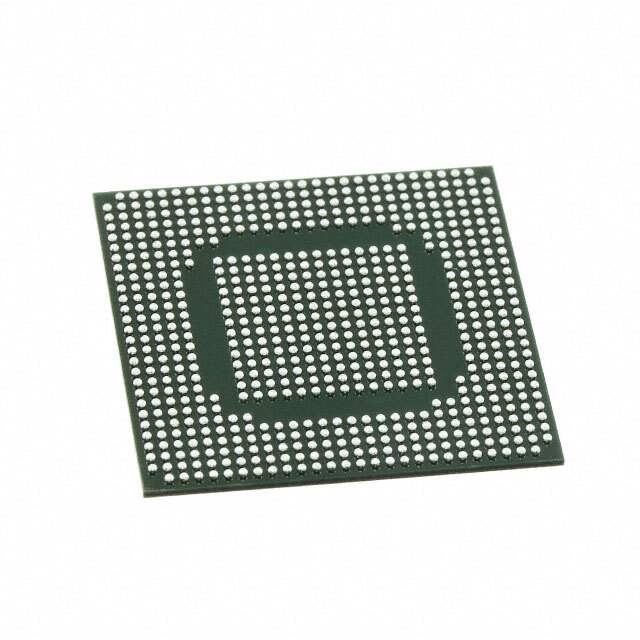

5CSXFC4C6U23C7N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Cyclone® V SX
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 64KB
Peripherals DMA, POR, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 800MHz
Primary Attributes FPGA - 40K Logic Elements
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 672-FBGA
Supplier Device Package 672-UBGA (23x23)
Number of I/O MCU - 181, FPGA - 145
Standard Package 60 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 856736-5CSXFC4C6U23C7N
Ultra Librarian 3D Model Ultra Librarian 5CSXFC4C6U23C7N CAD Model

Description

The 856736-5CSXFC4C6U23C7N is an embedded system-on-chip (SoC) integrated circuit from Intel.

  • Series: Cyclone V SX
  • Core Processor: dual ARM Cortex-A9 MPCore with CoreSight
  • Operating Speed: 800MHz
  • Package: Tray
  • Package Quantity: 60 pieces
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG
  • Peripherals: DMA, POR, and WDT
  • MCU I/O: 181
  • FPGA I/O: 145
  • RAM Size: 64KB
  • Architecture: MCU and FPGA
  • FPGA Logic Elements: 40K
  • Package/Case Type: 672-FBGA
  • Supplier Device Package: 672-UBGA (23x23)
  • Temperature Range: 0°C to 85°C
  • ECCN: 3A991D
  • MSL Level: 3 (168 hours)
  • REACH Status: unaffected
  • HTSUS Code: 8542.39.0001
