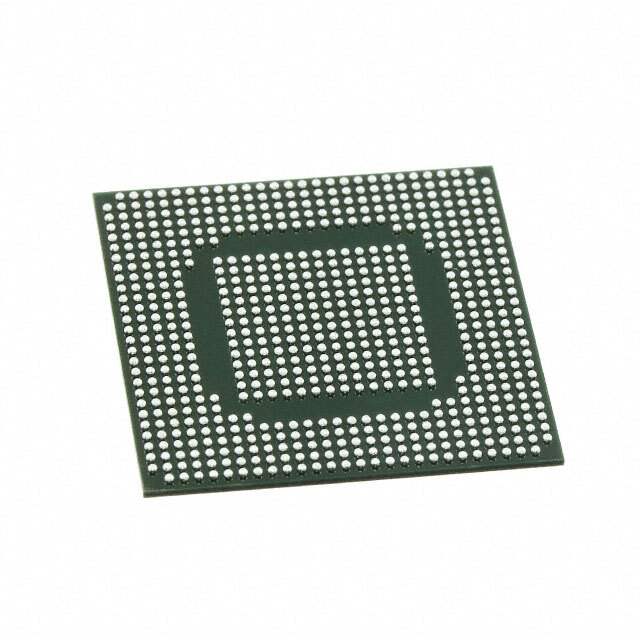

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Automotive, AEC-Q100, Cyclone® V SE
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 64KB
Peripherals DMA, POR, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 700MHz
Primary Attributes FPGA - 25K Logic Elements
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case 672-FBGA
Supplier Device Package 672-UBGA (23x23)
Number of I/O MCU - 181, FPGA - 145
Standard Package 60 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 845514-5CSEBA2U23A7N
Ultra Librarian 3D Model Ultra Librarian 5CSEBA2U23A7N CAD Model

Description

The 845514-5CSEBA2U23A7N is a System on Chip (SoC) from Intel.

  • Core Processor: Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
  • Speed: 700MHz
  • RAM Size: 64KB
  • Peripherals: DMA, POR, WDT
  • Number of MCU I/O: 181
  • Number of FPGA I/O: 145
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Operating Temperature: -40°C ~ 125°C
  • Package / Case: 672-UBGA, FC (23x23)
  • Supplier Device Package: 672-UBGA (23x23)
  • Mounting Type: Surface Mount
  • Packaging: Tray
  • Standard Package: 60 pcs
  • Lifecycle Status: Active
  • Applications: Automotive
  • Series: Cyclone® V SE
  • Manufacturer: Intel
