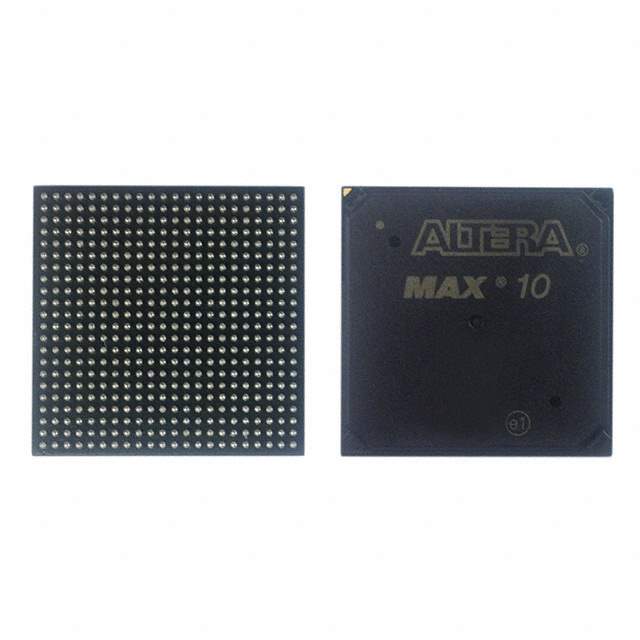

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 1000
Number of Logic Elements/Cells 16000
Total RAM Bits 562176
Number of I/O 246
Voltage - Supply 2.85V ~ 3.465V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA
Supplier Device Package 324-UBGA (15x15)
Other Names 544-3472,978988
Standard Package 119
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.39.0001
Win Source Part Number 1265072-10M16SCU324C8G
Ultra Librarian 3D Model Ultra Librarian 10M16SCU324C8G CAD Model

Description

The MAX® 10 series integrated circuit is an FPGA (Field Programmable Gate Array) that has 1000 LABs/CLBs, 16000 logic elements/cells, and 562176 total RAM bits.

  • I/O: 246
  • Voltage Supply: 2.85V ~ 3.465V
  • Package: 324-LFBGA
  • Supplier Device Package: 324-UBGA (15x15)
  • Operating Temperature Range: 0°C ~ 85°C (TJ)
  • ECCN: 3A991A2
  • REACH: Unaffected
  • Manufacturer: Intel
  • Packaging: Tray
