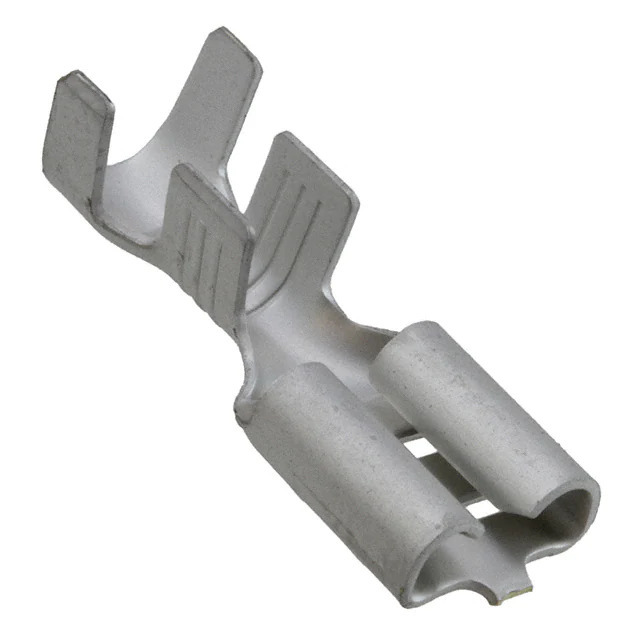

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.031" (0.79mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.772" (19.61mm)
Termination Crimp
Wire Gauge 10-15 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.118" ~ 0.197" (3.00mm ~ 5.00mm)
Base Product Number 170224
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364717-170224-2
Ultra Librarian 3D Model Ultra Librarian 170224-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston series offers a reliable and efficient solution for quick connect and quick disconnect applications. The 1364717-170224-2 is a female terminal with a tab width of 0.250" (6.35mm) and a tab thickness of 0.031" (0.79mm).

  • Terminal Type: Quick Disconnect, Female
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.031" (0.79mm)
  • Wire Gauge: 10-15 AWG
  • Material: Brass
  • Finish: Tin
  • Termination: Crimp
  • Insulation: Non-Insulated
  • Length - Overall: 0.772" (19.61mm)
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Tape & Reel (TR)
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
  • Series: Faston
