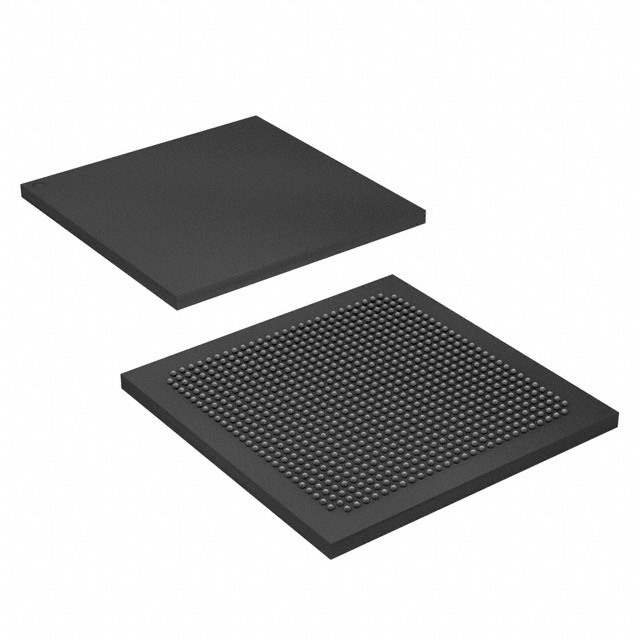

10AS016E3F29E2LG Real Image
Same model may have multiple batches, images only for reference.

10AS016E3F29E2LG

Part No 10AS016E3F29E2LG
Manufacturer Intel
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 1.5GHZ 780FBGA / Dual ARM? Cortex?-A9 MPCore? with CoreSight? System On Chip (SOC) IC Arria 10 SX FPGA - 160K Logic Elements 1.5GHz 780-FBGA, FC (29x29)
Datasheet
10AS016E3F29E2LG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Arria 10 SX
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 160K Logic Elements
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 780-BBGA, FCBGA
Supplier Device Package 780-FBGA, FC (29x29)
Number of I/O 288
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8542.39.0001
Win Source Part Number 853683-10AS016E3F29E2LG
Ultra Librarian 3D Model Ultra Librarian 10AS016E3F29E2LG CAD Model

Description

The 853683-10AS016E3F29E2LG is an integrated circuit from Intel's Arria 10 SX series by Intel.

  • Series: Arria 10 SX
  • Processor: Dual ARM Cortex-A9 MPCore with CoreSight, 1.5GHz
  • Connectivity: EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DMA, POR, WDT
  • I/O Pins: 288
  • RAM: 256KB
  • Logic Elements: 160K
  • Architecture: MCU and FPGA
  • Package: 780-BBGA
  • Operating Temperature: 0°C to 100°C
  • Product Status: Active
  • Packaging: Bulk
