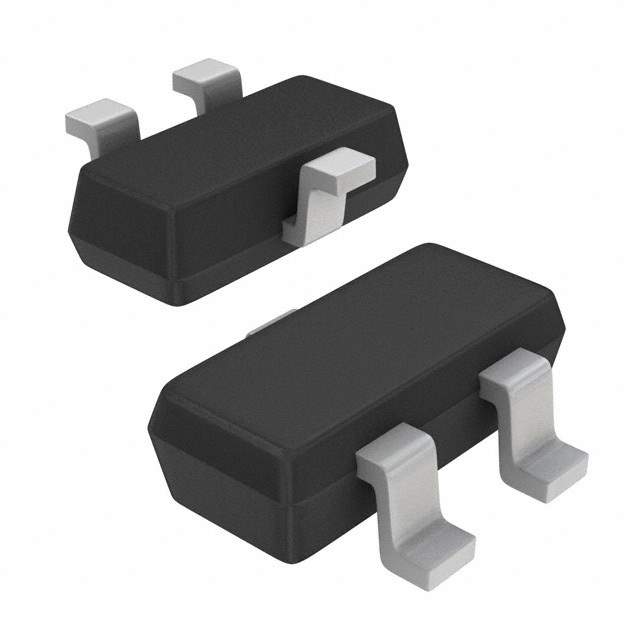

TLE49761KHTSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49761KHTSA1

Part No TLE49761KHTSA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH UNIPOLAR SC59 / Digital Switch Unipolar Switch Open Collector Hall Effect PG-SC59-3
Datasheet
TLE49761KHTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 11mT Trip, 5mT Release
Test Condition -40°C ~ 150°C
Voltage - Supply 3V ~ 18V
Current - Supply (Max) 17mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-SC59-3
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number TLE49761
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TLE49761KHTSA1CT,TLE4976-1K,TLE49761KHTSA1TR,TLE49761KHTSA1DKR,TLE4976-1K-ND,SP000475038
Standard Package 3,000
Win Source Part Number 969184-TLE49761KHTSA1
Ultra Librarian 3D Model Ultra Librarian TLE49761KHTSA1 CAD Model

Description

The TLE49761KHTSA1 is a temperature-compensated Hall effect unipolar switch designed for automotive applications.

  • Output Type: Open Collector
  • Sensing Range: 11mT trip and 5mT release
  • Current Supply: 17mA
  • Voltage Supply Range: 3V to 18V
  • Package: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: PG-SC59-3
