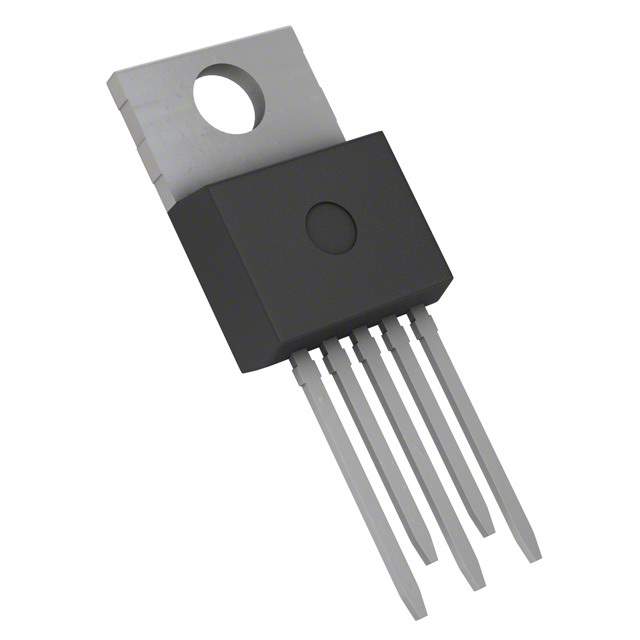

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series Automotive, AEC-Q100
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 42V
Output Voltage 5V
Voltage Dropout (Maximum) 0.5V @ 300mA
Output Current 450mA
Operating Supply Current 200μA ~ 22mA
PSRR 60dB (100Hz)
Control Features Reset
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage
Operating Temperature Range -40°C ~ 150°C
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package P-TO220-5-12
Win Source Part Number 1269473-TLE4275S
Manufacturer Homepage www.infineon.com
Family Name TLE 4275
Introduction Date August 01, 1999
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE4275S CAD Model

Description

The TLE4275S is a fixed output voltage regulator IC from Infineon Technologies.

  • Application: automotive applications
  • Operating temperature range: -40°C to 150°C
  • Output configuration: positive
  • Output voltage: 5V
  • Protection features: over current, over temperature, reverse polarity, short circuit, and transient voltage protection
  • Popularity: medium
  • Supply and demand status: balanced
  • Status: obsolete
