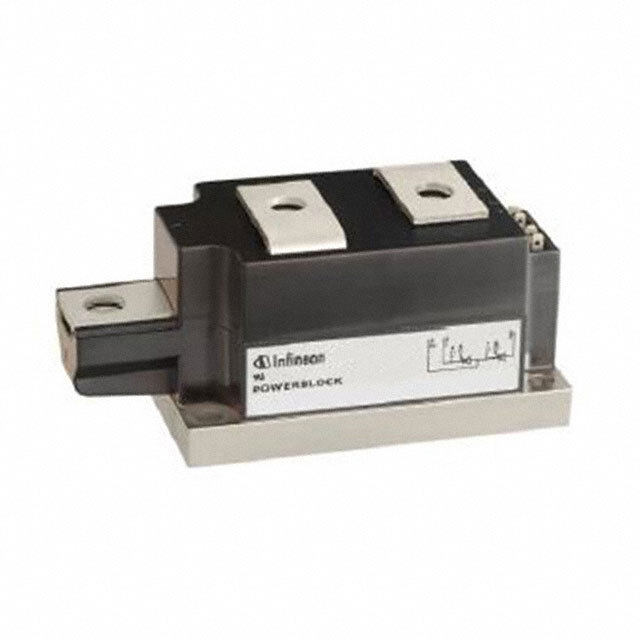

Same model may have multiple batches, images only for reference.
TD260N22KOFHPSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

TD260N22KOFHPSA1

Part No TD260N22KOFHPSA1
Manufacturer Infineon Technologies
Catalog TVS - Thyristors
Description SCR MODULE 2200V 450A MODULE / SCR Module 2.2 kV 450 A Series Connection - SCR/Diode Chassis Mount Module
Datasheet
TD260N22KOFHPSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Infineon Technologies
Package Tray
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 2.2 kV
Current - On State (It (AV)) (Max) 287 A
Current - On State (It (RMS)) (Max) 450 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 9500A @ 50Hz
Current - Hold (Ih) (Max) 300 mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case Module
Base Product Number TD260N22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names SP001192218,TD260N22KOF
Standard Package 3
Win Source Part Number 1022391-TD260N22KOFHPSA1
Ultra Librarian 3D Model Ultra Librarian TD260N22KOFHPSA1 CAD Model

Description

The TD260N22KOFHPSA1 is a thyristor SCR module that is designed for use in a range of electronic applications.

  • Current Hold (Ih) (Max): 300 mA
  • Voltage Off State: 2.2 kV
  • Voltage Gate Trigger (Vgt) (Max): 2 V
  • Current Gate Trigger (Igt) (Max): 200 mA
  • Current On State (It (AV)) (Max): 287 A
  • Current On State (It (RMS)) (Max): 450 A
  • Mounting Type: Chassis Mount
  • Package: Module
  • ECCN: EAR99
  • REACH: Unaffected
  • Applications: power supplies, DC-DC converters, and motor drives
