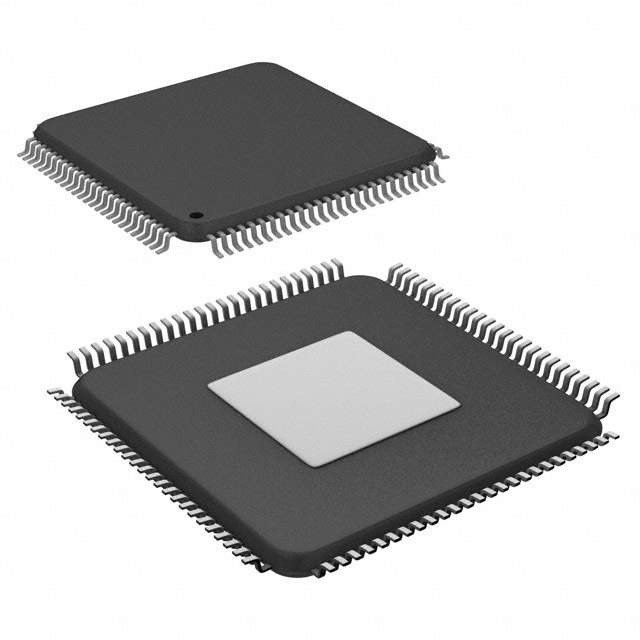

SAK-XE164HM-24F80L AA

Part No SAK-XE164HM-24F80L AA
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Datasheet
SAK-XE164HM-24F80L AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Infineon Technologies
Series XE16x
Package Tape & Reel (TR)
Product Status Obsolete
Core Processor C166SV2
Core Size 16-Bit
Speed 80MHz
Connectivity EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI
Peripherals I2S, POR, PWM, WDT
Number of I/O 76
Program Memory Size 192KB (192K x 8)
Program Memory Type FLASH
RAM Size 24K x 8
Supply Voltage - Operating 3V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 100-LQFP Exposed Pad
Supplier Device Package PG-LQFP-100-8
Base Product Number SAK-XE164
Other Names SAK-XE164HM-24F80L AA,SP000628620,SAK-XE164HM-24F80LAA
Standard Package 1,400
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A3
HTSUS 8542.31.0001
Win Source Part Number 1264526-SAK-XE164HM-24F80L AA
Ultra Librarian 3D Model Ultra Librarian SAK-XE164HM-24F80L AA CAD Model

Description

The 1264526-SAK-XE164HM-24F80L AA is a microcontroller from the XE16x series used in embedded systems.

  • Core Processor: C166SV2
  • Speed: 80MHz
  • Program Memory Size: 192KB (192K x 8)
  • RAM Size: 24K x 8
  • Data Converter: A/D 16x10b
  • Temperature Range: -40°C to 125°C
  • I/O Connectivity: EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, and USI
  • Package: 100-LQFP Exposed Pad
  • Supplier Device Package: PG-LQFP-100-8
  • Status: Obsolete
