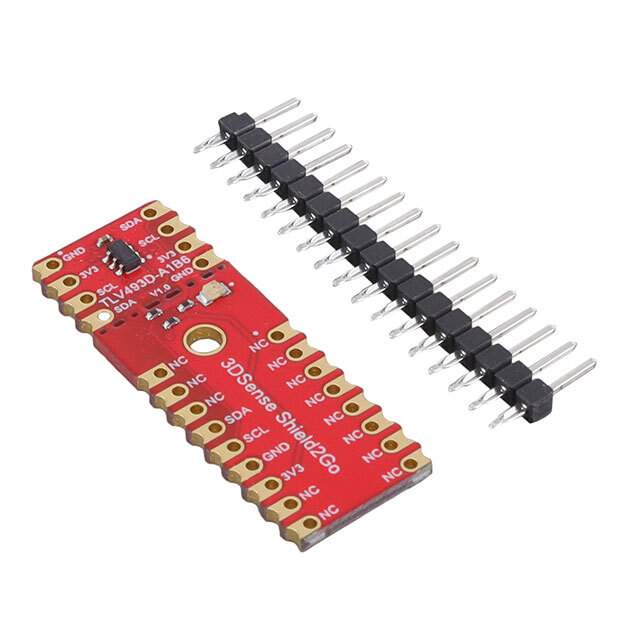

S2GO3DSENSETLV493DTOBO1 Real Image
Same model may have multiple batches, images only for reference.

S2GO3DSENSETLV493DTOBO1

Part No S2GO3DSENSETLV493DTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Datasheet
S2GO3DSENSETLV493DTOBO1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Package Bulk
Platform Shield2Go
Type Sensor
Function Magnetic Hall Effect
Utilized IC / Part TLV493D-A1B6
Contents Board(s)
Base Product Number S2GO3
Other Names S2GO_3D-SENSE_TLV493D,SP001823678
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283913-S2GO3DSENSETLV493DTOBO1
Ultra Librarian 3D Model Ultra Librarian S2GO3DSENSETLV493DTOBO1 CAD Model

Description

The S2GO3DSENSETLV493DTOBO1 is a sensor board for magnetic hall effect sensors from Infineon Technologies.

  • Device: TLV493D-A1B6 sensor
  • Platform: Shield2Go
  • Sensor Type: 3D magnetic
  • Resolution: 10 bits
  • Magnetic Field Measurement: Up to 10 mT
  • Package: Bulk
  • Supplied With: Board only
  • Temperature Range: -40°C to 125°C
