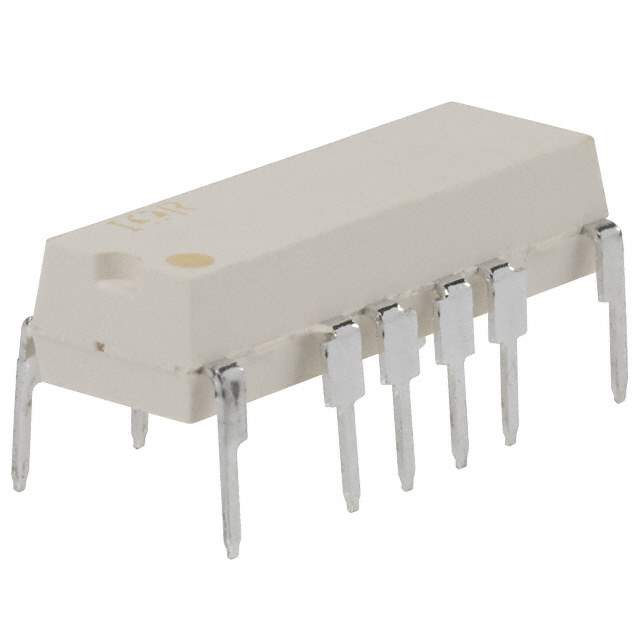

PVR3301 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 24 Ohm
Load Current 180mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 300 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 16-DIP
Relay Type Relay
Win Source Part Number 284521-PVR3301
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVR3301 CAD Model

Description

The Infineon Technologies PVR3301 is a DPST (2 Form A) circuit relay that is ideal for various applications.

  • Circuit: DPST (2 Form A)
  • Load Current: 180mA
  • Voltage Range: 0 to 300 V
  • Output Types: AC and DC
  • Win Source Part Number: 284521-PVR3301
  • Package: 16-DIP case
