Same model may have multiple batches, images only for reference.

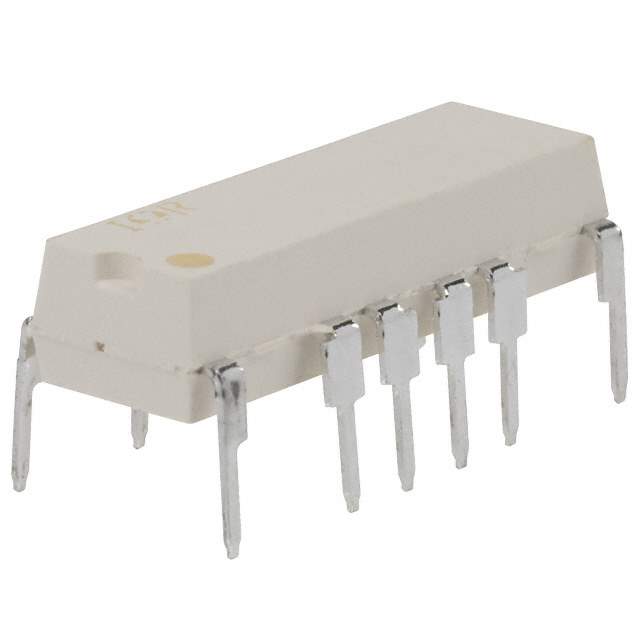

PVR3300NPBF Real Image
Same model may have multiple batches, images only for reference.

PVR3300NPBF

Part No PVR3300NPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOV 300V 165MA 16DIP
Datasheet
PVR3300NPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 24 Ohm
Load Current 165mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 300 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 16-DIP
Relay Type Relay
Win Source Part Number 210373-PVR3300NPBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian PVR3300NPBF CAD Model

Description

The Infineon Technologies PVR3300NPBF is a DPST (2 Form A) relay.

  • Circuit: DPST (2 Form A)
  • Design: for applications requiring high switching capacity and long life
  • Voltage Input: 1.2VDC
  • Load Current: 165mA
  • Load Voltage: 0 to 300V
  • Maximum On-Resistance: 24 Ohm
  • Package: 16-DIP
  • Supply and Demand: balance
  • Quantity per Package: 25
