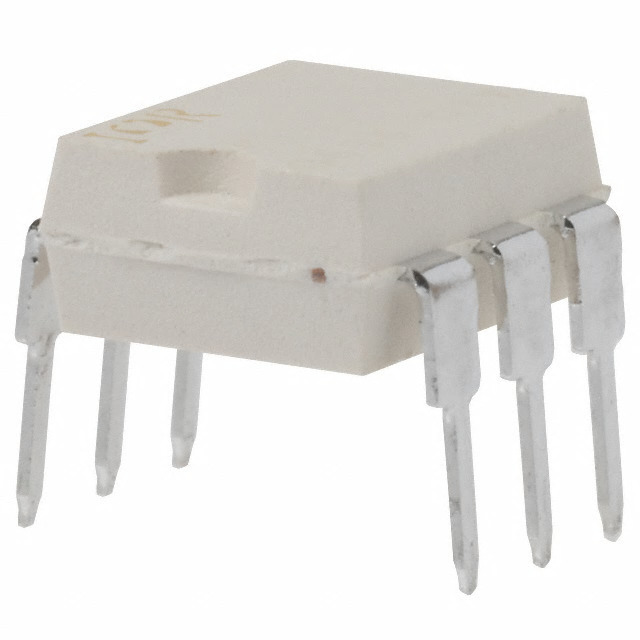

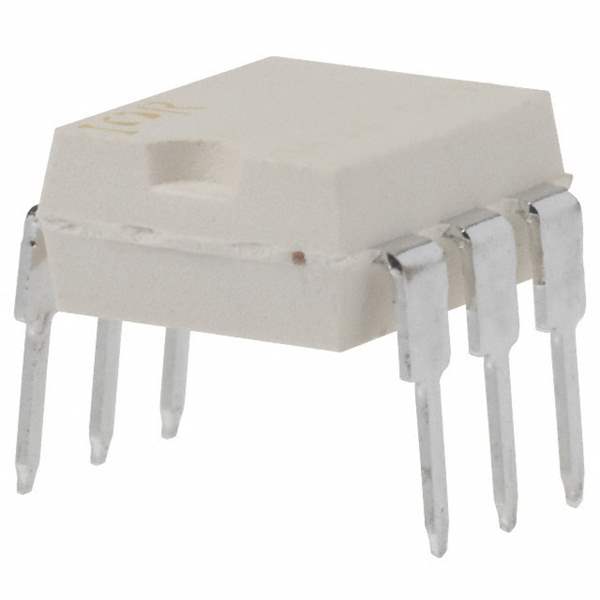

PVN013PBF Infineon Technologies
Same model may have multiple batches, images only for reference.

PVN013PBF

Part No PVN013PBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description HEXFET® Power MOSFET Photovoltaic Relay HEXFET® Power MOSFET Photovoltaic Relay | SSR RELAY SPST-NO 2.5A 0-20V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube
Mounting Style Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.2VDC
Load Voltage (V) 0V ~ 20V
Load Current 2.5A
On-State Resistance (Maximum) 100 mOhms
Termination Style PC Pin
Manufacturer Package 6-DIP
Supplier Device Package 6-DIP
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 711735-PVN013PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PVN013PBF CAD Model

Description

PVN013PBF from Infineon Technologies is a through-hole mounting style relay with a PC pin termination style.

  • Load Current: 2.5A
  • Load Voltage Range: 0V to 20V
  • Maximum On-State Resistance: 100 mOhms
  • Package: 6-DIP
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 2,000
