Same model may have multiple batches, images only for reference.

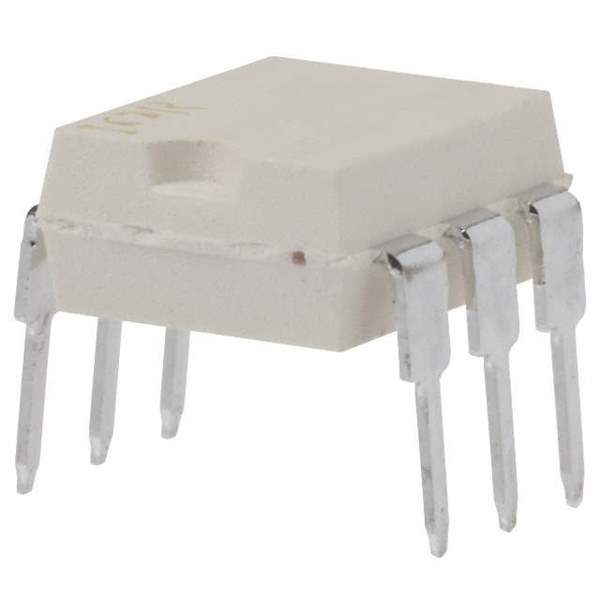

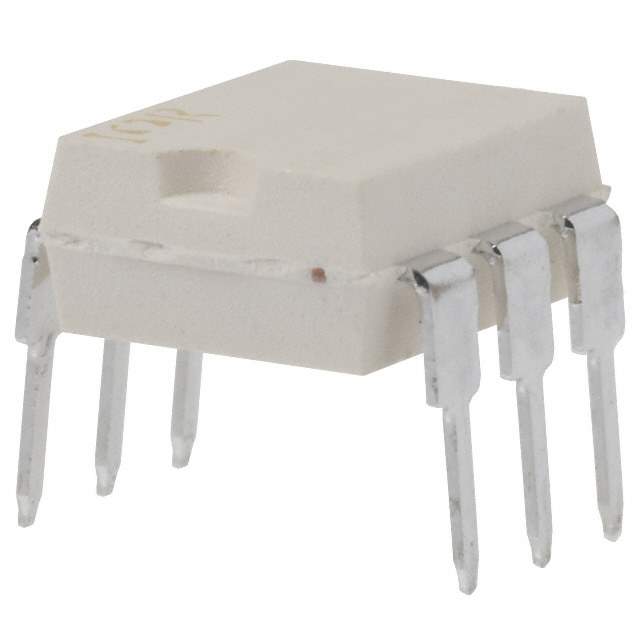

PVN012PBF Real Image
Same model may have multiple batches, images only for reference.

PVN012PBF

Part No PVN012PBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO 20V 2.5A 6-DIP
Datasheet
PVN012PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 100 mOhm
Load Current 2.5A
Voltage - Input 1.2VDC
Voltage - Load 0 to 20 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 027003-PVN012PBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVN012PBF CAD Model

Description

The Infineon Technologies 027003-PVN012PBF is an active electronic component that is used in relays.

  • Supply and Demand Status: balanced
  • Manufacturer: Infineon Technologies
  • Availability: @ Win Source
  • Use: in a variety of electronic devices
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 2.5A
  • Voltage Input: 1.2VDC
  • Voltage Load: 0 to 20V
  • Case/Package: 6-DIP
  • Mounting: through-hole
  • Termination: PC pin
