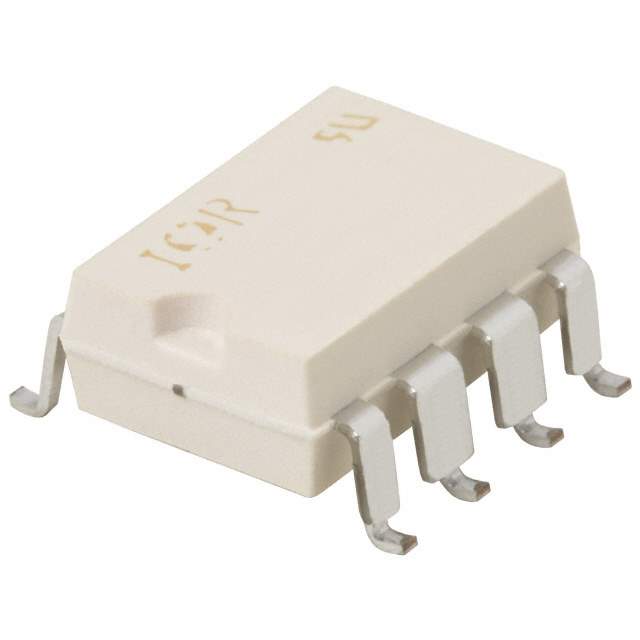

PVI5013RS-T Real Image
Same model may have multiple batches, images only for reference.

PVI5013RS-T

Part No PVI5013RS-T
Manufacturer Infineon Technologies
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV 2CH PHVOLT 8-SMT
Datasheet
PVI5013RS-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Photovoltaic Output 3750Vrms 2 Channel 8-SMD
Manufacturer Infineon Technologies
Series PVI
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 8-SMD, Gull Wing
Case / Package 8-SMD
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 750
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890488-PVI5013RS-T
Ultra Librarian 3D Model Ultra Librarian PVI5013RS-T CAD Model

Description

The PVI5013RS-T optoisolator from Infineon Technologies is a photovoltaic output 3750Vrms 2 channel 8-SMD device that is designed for use in isolators.

  • Output: Photovoltaic
  • Voltage: 3750Vrms
  • Channels: 2
  • Package: 8-SMD, Gull Wing
  • Mounting: Surface Mount
  • Package Size: Reel - TR
  • Temperature Range: -40°C ~ 85°C
