Same model may have multiple batches, images only for reference.

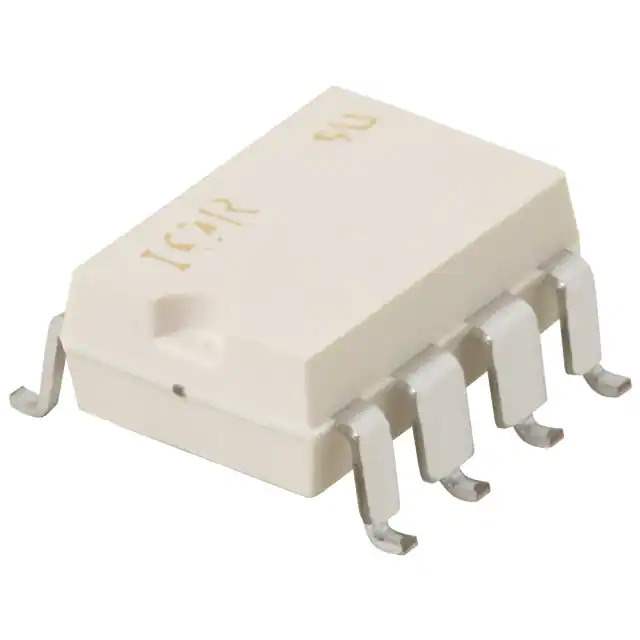

PVDZ172NS Real Image
Same model may have multiple batches, images only for reference.

PVDZ172NS

Part No PVDZ172NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1.5A 0-60V
Datasheet
PVDZ172NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVD, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 1.5 A
On-State Resistance (Max) 250 mOhms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658163-PVDZ172NS
Ultra Librarian 3D Model Ultra Librarian PVDZ172NS CAD Model

Description

The PVDZ172NS is a solid-state relay from Infineon Technologies.

  • Series: PVD
  • Technology: HEXFET
  • Termination Style: Gull Wing
  • Package Type: Tube
  • Input Voltage: 1.2VDC
  • Output Type: DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance (Max): 250 mOhms
  • Load Current: 1.5 A
  • Load Voltage Range: 0 V to 60 V
  • Mounting Type: Surface Mount
  • Package: 8-SMD (4 leads)
  • Product Status: Obsolete
